PTA1543-2010CIB103
ActiveBourns Inc.

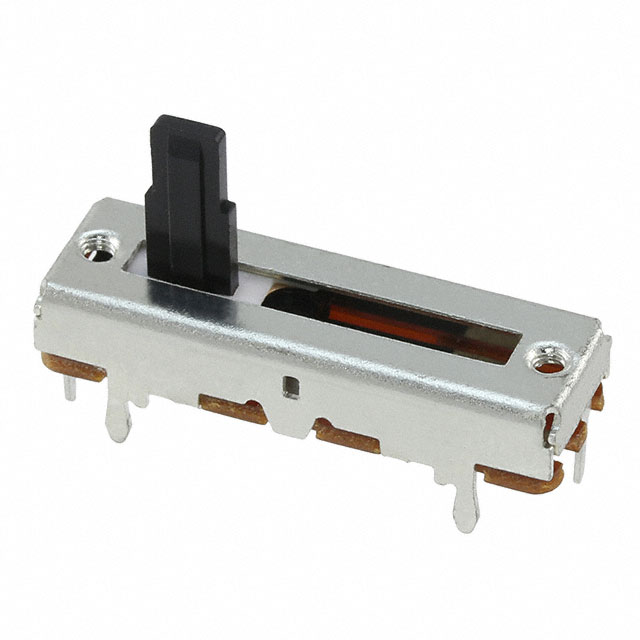

RES CARBON FILM POT 10K OHM 20% 0.05W(1/20W) (30 X 9 X 19.5MM) PIN THRU-HOLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTA1543-2010CIB103
ActiveBourns Inc.
RES CARBON FILM POT 10K OHM 20% 0.05W(1/20W) (30 X 9 X 19.5MM) PIN THRU-HOLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTA1543-2010CIB103 |
|---|---|
| Adjustment Type | Top |
| Fader Type | Standard |
| Mounting Type | Through Hole |
| Power (Watts) | 0.05 W |
| Power (Watts) | 50 mW |
| Resistance | 10000 Ohms |
| Size / Dimension [x] | 1.181 in |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [y] | 0.354 in |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [z] | 6.5 mm |
| Size / Dimension [z] | 0.256 in |
| Tolerance | 20 % |
| Travel Range | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.88 | |
| 10 | $ 1.51 | |||
| 25 | $ 1.38 | |||
| 40 | $ 1.32 | |||
| 80 | $ 1.24 | |||
| 230 | $ 1.12 | |||
| 440 | $ 1.05 | |||
| 945 | $ 0.97 | |||
| 4900 | $ 0.83 | |||
Description
General part information
PTA1543 Series
10 kOhms 0.05W, 1/20W Through Hole Slide Potentiometer Top Adjustment Type
