2961493

Active

Phoenix Contact

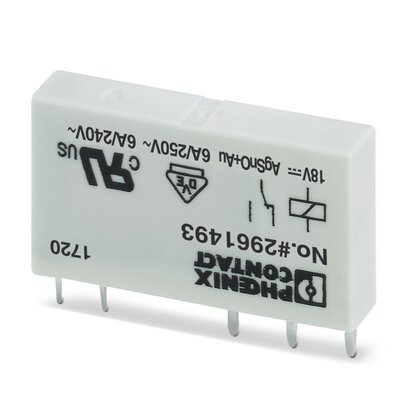

RELAY GEN PURPOSE SPDT 6A 18V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2961493

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 18V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.97
		10	$ 10.25
		50	$ 9.43
		100	$ 8.71
		250	$ 8.30
		500	$ 8.26

Description

General part information

29614 Series

General Purpose Relay SPDT (1 Form C) 18VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2961493	29614 Series

Approval Agency	cULus, EAC, UR	cULus, EAC, UR
Coil Current	9 mA	3 - 32 mA
Coil Resistance	1.906 kOhms	1.906 - 32500 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	18 VDC	18 - 230 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	6 A	6 - 16 A
Mounting Type	Through Hole	Through Hole
Operate Time	5 ms	5 - 12 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	2.5 ms	2.5 - 9 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	PC Pin	PC Pin

29614 Series

POWER RELAY 230VAC 16A SPDT(29X12.7X15.7)MM THT

Part	Coil Resistance	Relay Type	Termination Style	Switching Voltage	Release Time	Mounting Type	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Operate Time	Approval Agency	Contact Form	Contact Rating (Current)	Contact Material	Coil Current
Phoenix Contact 2961422	32500 Ohms	General Purpose	PC Pin	250 VAC, 250 VDC	9 ms	Through Hole	230 VAC	85 °C	-40 °C	Non Latching	12 ms	cULus, EAC, UR	SPDT (1 Form C)	16 A	Silver Nickel (AgNi)
Phoenix Contact 2961480	32500 Ohms	General Purpose	PC Pin	250 VAC, 250 VDC	9 ms	Through Hole	230 VAC	85 °C	-40 °C	Non Latching	12 ms	cULus, EAC, UR	DPDT (2 Form C)	8 A	Gold (Au), Silver Nickel (AgNi)
Phoenix Contact 2961435	350 Ohms	General Purpose	PC Pin	250 VAC, 250 VDC	9 ms	Through Hole	24 VAC	85 °C	-40 °C	Non Latching	12 ms	cULus, EAC, UR	DPDT (2 Form C)	8 A	Silver Nickel (AgNi)	32 mA
Phoenix Contact 2961464	350 Ohms	General Purpose	PC Pin	250 VAC, 250 VDC	9 ms	Through Hole	24 VAC	85 °C	-40 °C	Non Latching	12 ms	cULus, EAC, UR	DPDT (2 Form C)	8 A	Gold (Au), Silver Nickel (AgNi)	24 mA
Phoenix Contact 2961451	32500 Ohms	General Purpose	PC Pin	250 VAC, 250 VDC	9 ms	Through Hole	230 VAC	85 °C	-40 °C	Non Latching	12 ms	cULus, EAC, UR	DPDT (2 Form C)	8 A	Silver Nickel (AgNi)	3 mA
Phoenix Contact 2961419	8.1 kOhms	General Purpose	PC Pin	250 VAC, 250 VDC	9 ms	Through Hole	120 VAC	85 °C	-40 °C	Non Latching	12 ms	cULus, EAC, UR	SPDT (1 Form C)	16 A	Silver Nickel (AgNi)	7 mA
Phoenix Contact 2961493	1.906 kOhms	General Purpose	PC Pin	250 VAC, 250 VDC	2.5 ms	Through Hole	18 VDC	85 °C	-40 °C	Non Latching	5 ms	cULus, EAC, UR	SPDT (1 Form C)	6 A	Gold (Au), Silver Nickel (AgNi)	9 mA
Phoenix Contact 2961477	8.1 kOhms	General Purpose	PC Pin	250 VAC, 250 VDC	9 ms	Through Hole	120 VAC	85 °C	-40 °C	Non Latching	12 ms	cULus, EAC, UR	DPDT (2 Form C)	8 A	Gold (Au), Silver Nickel (AgNi)	7 mA
Phoenix Contact 2961406	350 Ohms	General Purpose	PC Pin	250 VAC, 250 VDC	9 ms	Through Hole	24 VAC	85 °C	-40 °C	Non Latching	12 ms	cULus, EAC, UR	SPDT (1 Form C)	16 A	Silver Nickel (AgNi)	24 mA
