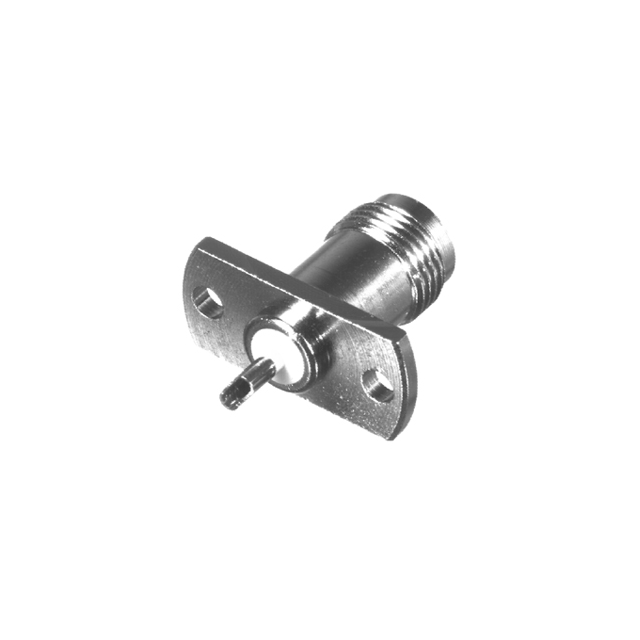

RFT-1210-03

Active

RF Industries

TNC FEMALE; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

TNC FEMALE; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFT-1210-03

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Impedance	Connector Style	Housing Color	Voltage Rating	Contact Termination	Body Finish	Dielectric Material	Connector Type	Center Contact Material	Number of Ports	Center Contact Plating	Body Material	Frequency - Max [Max]	Mounting Feature	Shield Termination
RF Industries RFT-1210-03	50 Ohms	TNC	Silver	500 V	Solder Cup	Nickel	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Brass	1	Gold	Brass	7 GHz	Flange	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
