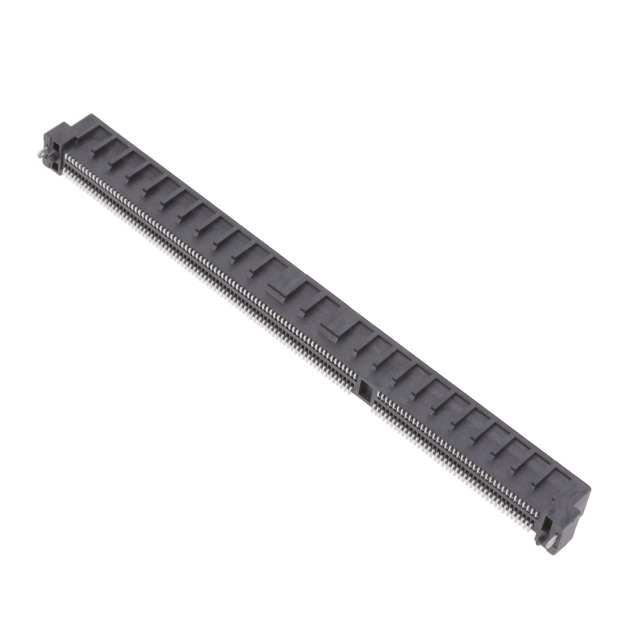

SE1024026111111
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 240P 0.026
Deep-Dive with AI
Search across all available documentation for this part.
SE1024026111111
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 240P 0.026
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE1024026111111 |
|---|---|
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Board Guide, Board Lock |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 240 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.026 in |
| Pitch [x] | 0.65 mm |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 24 | $ 13.10 | |
| 48 | $ 12.09 | |||
| 120 | $ 11.42 | |||
| 240 | $ 10.41 | |||
| 600 | $ 9.74 | |||
Description
General part information
SE102 Series
240 Position Female Connector Non Specified - Dual Edge Gold 0.026" (0.65mm) Black
