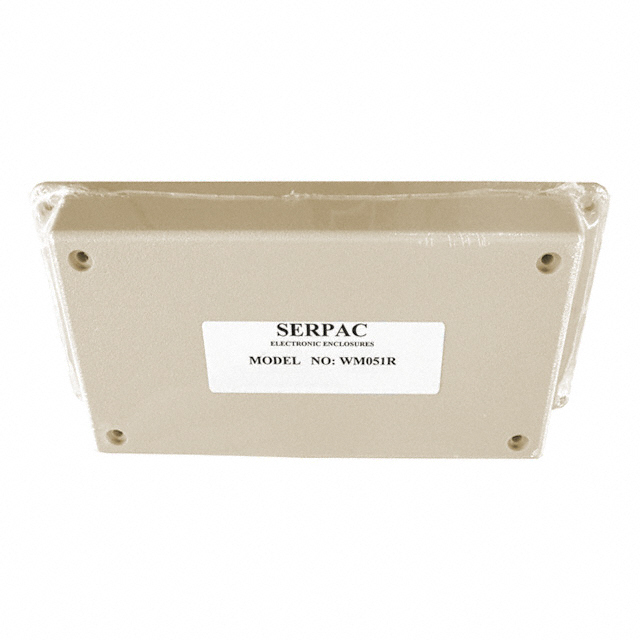

WM051R,AL

Active

Serpac

BOX ABS ALMOND 5.62"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

WM051R,AL

Active

Serpac

BOX ABS ALMOND 5.62"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM051R,AL

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Almond
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	27.94 mm
Height [z]	1.1 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	100.24 g
Weight	0.221 lb

WM051 Series

Part	Thickness	Thickness	Weight	Weight	Color	Material Flammability Rating	Area (L x W)	Area (L x W)	Features	Material	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Design	Ratings
Serpac WM051R,BK	2.54 mm	0.1 in	100.24 g	0.221 lb	Black	UL94 HB	18.3 in²	118 cm²	Front Access Mounting Flange PCB Supports Wall Mount	Plastic ABS	27.94 mm	1.1 in	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Cover Included	IP40 NEMA 1
Serpac WM051I,BK	2.54 mm	0.1 in	100.24 g	0.221 lb	Black	UL94 HB	18.3 in²	118 cm²	Mounting Flange PCB Supports Wall Mount	Plastic ABS	27.94 mm	1.1 in	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Cover Included	IP40 NEMA 1
Serpac WM051,AL	2.54 mm	0.1 in	100.24 g	0.221 lb	Almond	UL94 HB	18.3 in²	118 cm²	Mounting Flange PCB Supports Wall Mount	Plastic ABS	27.94 mm	1.1 in	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Cover Included	IP40 NEMA 1
Serpac WM051I,GY	2.54 mm	0.1 in	100.24 g	0.221 lb	Gray	UL94 HB	18.3 in²	118 cm²	Mounting Flange PCB Supports Wall Mount	Plastic ABS	27.94 mm	1.1 in	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Cover Included	IP40 NEMA 1
Serpac WM051,GY	2.54 mm	0.1 in	100.24 g	0.221 lb	Gray	UL94 HB	18.3 in²	118 cm²	Mounting Flange PCB Supports Wall Mount	Plastic ABS	27.94 mm	1.1 in	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Cover Included	IP40 NEMA 1
Serpac WM051R,AL	2.54 mm	0.1 in	100.24 g	0.221 lb	Almond	UL94 HB	18.3 in²	118 cm²	Front Access Mounting Flange PCB Supports Wall Mount	Plastic ABS	27.94 mm	1.1 in	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Cover Included	IP40 NEMA 1
Serpac WM051RI,BK	2.54 mm	0.1 in	100.24 g	0.221 lb	Black	UL94 HB	18.3 in²	118 cm²	Front Access Mounting Flange PCB Supports Wall Mount	Plastic ABS	27.94 mm	1.1 in	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Cover Included	IP40 NEMA 1
Serpac WM051I,AL	2.54 mm	0.1 in	100.24 g	0.221 lb	Almond	UL94 HB	18.3 in²	118 cm²	Mounting Flange PCB Supports Wall Mount	Plastic ABS	27.94 mm	1.1 in	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Cover Included	IP40 NEMA 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.63

Description

General part information

WM051 Series

Box Plastic, ABS Almond Cover Included 5.620" L x 3.250" W (142.75mm x 82.55mm) X 1.100" (27.94mm)

Documents

Technical documentation and resources

No documents available
