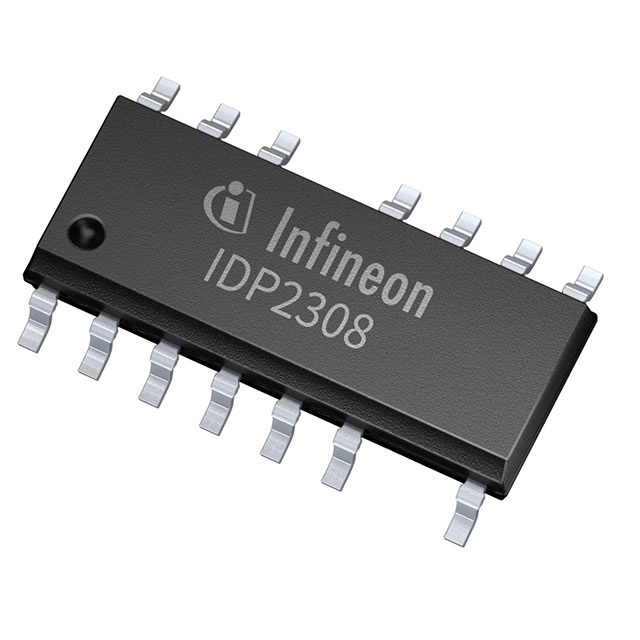

IDP2308XUMA1

Active

Infineon Technologies

THE IDP2308 IS A MULTI-MODE PFC AND LLC CONTROLLER COMBINED WITH A FLOATING HIGH SIDE DRIVER AND A STARTUP CELL.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IDP2308XUMA1

Active

Infineon Technologies

THE IDP2308 IS A MULTI-MODE PFC AND LLC CONTROLLER COMBINED WITH A FLOATING HIGH SIDE DRIVER AND A STARTUP CELL.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IDP2308XUMA1

Current - Supply	18 mA
Input Type	Voltage
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	16-SOIC
Package / Case	14 Leads
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	PG-DSO-14-66
Type	Controller

IDP2308 Series

Part	Package / Case [y]	Package / Case	Package / Case	Package / Case [x]	Current - Supply	Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Input Type	Mounting Type
Infineon Technologies IDP2308XUMA1	3.9 mm	16-SOIC	14 Leads	0.154 in	18 mA	Controller	-40 °C	125 ¯C	PG-DSO-14-66	Voltage	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.12
		10	$ 3.46
		100	$ 2.80
		500	$ 2.49
		1000	$ 2.13
	Digi-Reel®	1	$ 5.22
		10	$ 3.47
		100	$ 2.48
		500	$ 2.05
		1000	$ 1.92
	Tape & Reel (TR)	2500	$ 1.92
Newark	Each (Supplied on Cut Tape)	1	$ 3.76
		10	$ 2.51
		25	$ 2.27
		50	$ 2.02
		100	$ 1.78
		250	$ 1.62
		500	$ 1.47
		1000	$ 1.37

Description

General part information

IDP2308 Series

The IDP2308 is a multi-mode PFC and LLC controller combined with a floating high side driver and a startup cell. A digital engine provides advanced algorithms for multi-mode operation to support highest efficiency over the whole load range. A comprehensive and configurable protection feature set is implemented. Only a minimum of external components are required with the low pin count DSO-14 package. The integrated HV startup cell and advanced burst mode enable to achieve low stand-by power. In addition a one-time-programming (OTP) unit is integrated to provide a wide set of configurable parameters that help to ease the design in phase.
