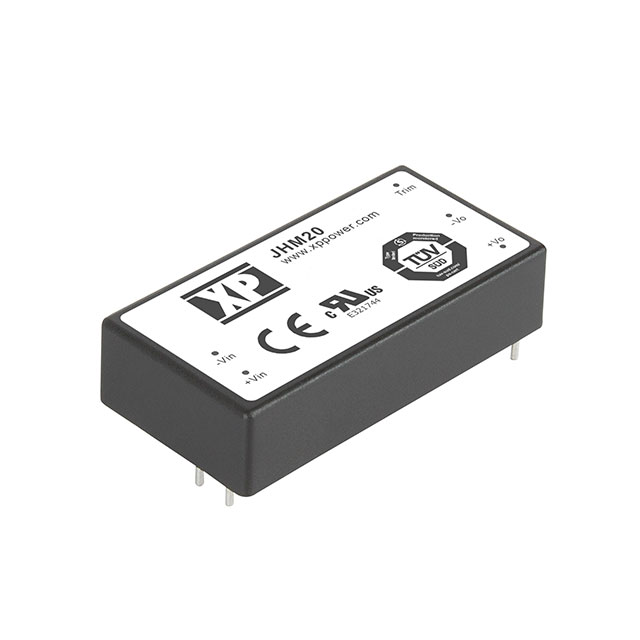

JHM2024D12

Active

XP POWER

DC DC CONVERTER +/-12V 20W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER +/-12V 20W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Applications	Type	Voltage - Output 2	Efficiency	Voltage - Input (Max) [Max]	Power (Watts)	Package / Case	Package / Case	Voltage - Isolation	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
XP POWER JHM2024D12	OCP OTP OVP SCP UVLO	12 V	-40 °C	80 ¯C	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	2	835 mA	835 mA	Medical	Isolated Module	-12 V	88 %	36 V	20 W	5 Leads	6-DIP Module	4000 V	18 V
XP POWER JHM2024S12	OCP OTP OVP SCP UVLO	12 V	-40 °C	80 ¯C	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	1			Medical	Isolated Module		88 %	36 V	20 W	5 Leads	6-DIP Module	4000 V	18 V	1.67 A
XP POWER JHM2024D05	OCP OTP OVP SCP UVLO	5 V	-40 °C	80 ¯C	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	2			Medical	Isolated Module	-5 V	86 %	36 V	20 W	5 Leads	6-DIP Module	4000 V	18 V	2 A	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 835mA, 835mA 18V - 36V Input
