G874D061202CEU

Active

Amphenol ICC (Commercial Products)

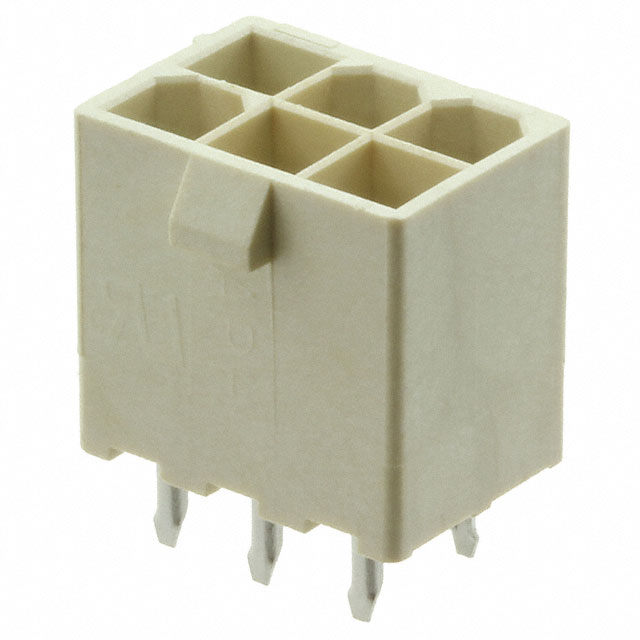

CONN HEADER VERT 6POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G874D061202CEU

Active

Amphenol ICC (Commercial Products)

CONN HEADER VERT 6POS 4.2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G874D061202CEU

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 V

G874D Series

Part	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Contact Type	Number of Positions	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Termination	Shrouding	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Material	Style	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Fastening Type	Contact Shape	Number of Positions
Amphenol ICC (Commercial Products) G874D161202CEU	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Male Pin	16	2	4.2 mm	0.165 in	Solder	Shrouded - 4 Wall	UL94 V-0	Natural	All	12.8 mm	0.504 in	-30 ░C	80 C	600 V	2.54 çm	100 çin	Through Hole	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Tin	2.54 µm	100 µin	Brass	Locking Ramp	Square
Amphenol ICC (Commercial Products) G874D041202CEU	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Male Pin		2	4.2 mm	0.165 in	Solder	Shrouded - 4 Wall	UL94 V-0	Natural	All	12.8 mm	0.504 in	-30 ░C	80 C	600 V	2.54 çm	100 çin	Through Hole	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Tin	2.54 µm	100 µin	Brass	Locking Ramp	Square	4
Amphenol ICC (Commercial Products) G874D121205CEU	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Male Pin		2	4.2 mm	0.165 in	Solder	Shrouded - 4 Wall	UL94 V-0	Black	All	12.8 mm	0.504 in	-30 ░C	80 C	600 V	2.54 çm	100 çin	Through Hole	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Tin	2.54 µm	100 µin	Brass	Locking Ramp	Square	12
Amphenol ICC (Commercial Products) G874D141202CEU	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Male Pin		2	4.2 mm	0.165 in	Solder	Shrouded - 4 Wall	UL94 V-0	Natural	All	12.8 mm	0.504 in	-30 ░C	80 C	600 V	2.54 çm	100 çin	Through Hole	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Tin	2.54 µm	100 µin	Brass	Locking Ramp	Square	14
Amphenol ICC (Commercial Products) G874D061202CEU	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Male Pin		2	4.2 mm	0.165 in	Solder	Shrouded - 4 Wall	UL94 V-0	Natural	All	12.8 mm	0.504 in	-30 ░C	80 C	600 V	2.54 çm	100 çin	Through Hole	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Tin	2.54 µm	100 µin	Brass	Locking Ramp	Square	6
Amphenol ICC (Commercial Products) G874D101202CEU	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Male Pin		2	4.2 mm	0.165 in	Solder	Shrouded - 4 Wall	UL94 V-0	Natural	All	12.8 mm	0.504 in	-30 ░C	80 C	600 V	2.54 çm	100 çin	Through Hole	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Tin	2.54 µm	100 µin	Brass	Locking Ramp	Square	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	8400	$ 0.34

Description

General part information

G874D Series

Connector Header Through Hole 6 position 0.165" (4.20mm)
