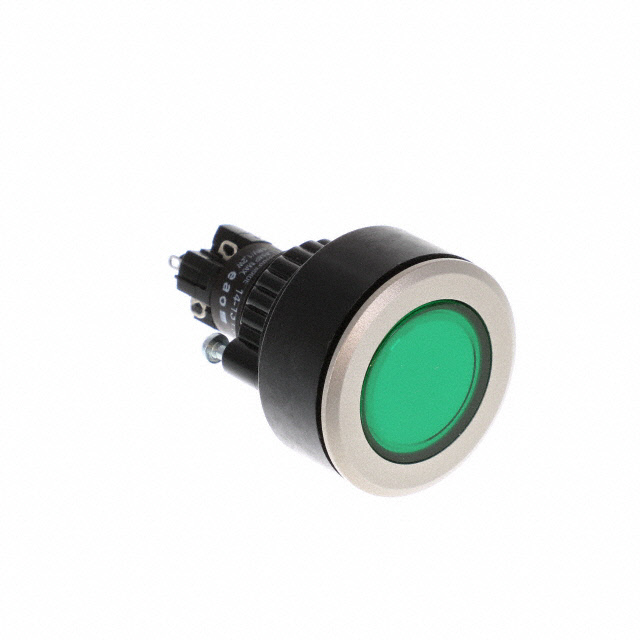

K14-131.221081
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K14-131.221081
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | K14-131.221081 | K14-131 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | DPST-NO/NC | DPST-NO/NC |
| Color - Actuator/Cap | Green | Green, Blue, Red |
| Current Rating (Amps) | 5 A | 5 A |
| Illumination Type, Color | LED, Green | LED, Green, Blue, Red |
| Illumination Voltage (Nominal) | 24 VAC/DC | 24 VAC/DC |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 2000000 Cycles | 2000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C | 55 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 30.5 mm | 22.3 - 30.5 mm |
| Switch Function | Off-Mom, On-Mom | Off-Mom, On-Mom |
| Termination Style | Solder Lug | Solder Lug |
| Type | Illuminated, Standard | Illuminated, Standard |
| Voltage Rating - AC | 250 V | 250 V |
| Voltage Rating - DC | - | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 69.59 | |
| 10 | $ 63.41 | |||
| 25 | $ 59.15 | |||
| 50 | $ 56.83 | |||
| 100 | $ 52.97 | |||
K14-131 Series
SWITCH PB DPST-NO/NC 5A 250V
| Part | Type | Illumination Type, Color | Color - Actuator/Cap | Ingress Protection | Actuator Marking | Mounting Type | Illumination Voltage (Nominal) | Switch Function | Panel Cutout Dimensions [diameter] | Actuator Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Mechanical Life | Termination Style | Circuit | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Illuminated, Standard | Green, LED | Green | IP67 - Dust Tight, Waterproof | No Marking | Panel Mount, Front | 24 VAC/DC | Off-Mom, On-Mom | 30.5 mm | Button, Flush, Round | 250 V | 55 °C | -25 °C | 5 A | 2000000 Cycles | Solder Lug | DPST-NO/NC | ||
Illuminated, Standard | Blue, LED | Blue | IP67 - Dust Tight, Waterproof | No Marking | Panel Mount, Front | 24 VAC/DC | Off-Mom, On-Mom | 22.3 mm | Button, Flush, Round | 250 V | 55 °C | -25 °C | 5 A | 2000000 Cycles | Solder Lug | DPST-NO/NC | 250 V | |
Illuminated, Standard | Green, LED | Green | IP67 - Dust Tight, Waterproof | No Marking | Panel Mount, Front | 24 VAC/DC | Off-Mom, On-Mom | 22.3 mm | Button, Round | 250 V | 55 °C | -25 °C | 5 A | 2000000 Cycles | Solder Lug | DPST-NO/NC | 250 V | |
Illuminated, Standard | LED, Red | Red | IP67 - Dust Tight, Waterproof | No Marking | Panel Mount, Front | 24 VAC/DC | Off-Mom, On-Mom | 22.3 mm | Button, Round | 250 V | 55 °C | -25 °C | 5 A | 2000000 Cycles | Solder Lug | DPST-NO/NC | 250 V | |
Illuminated, Standard | Green, LED | Green | IP67 - Dust Tight, Waterproof | No Marking | Panel Mount, Front | 24 VAC/DC | Off-Mom, On-Mom | 22.3 mm | Button, Flush, Round | 250 V | 55 °C | -25 °C | 5 A | 2000000 Cycles | Solder Lug | DPST-NO/NC | 250 V |
Description
General part information
K14-131 Series
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
