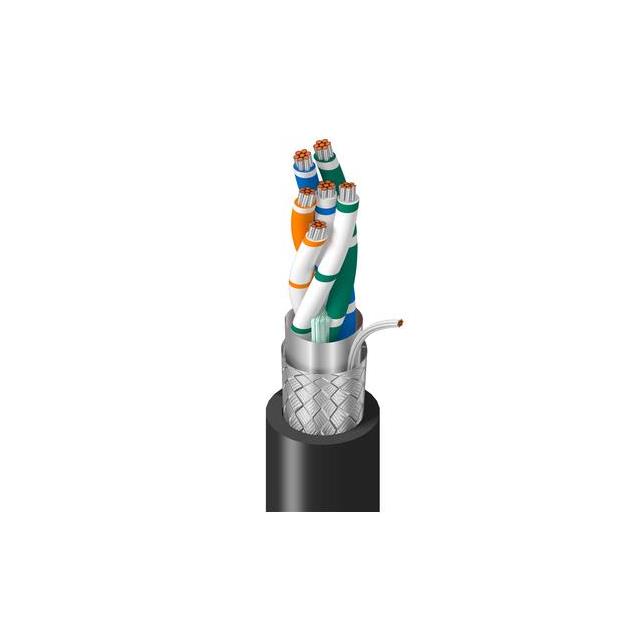

3108A 0105000

Active

Belden Inc.

MULTI-PAIR 6COND 22AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 22AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	3108A 0105000

Cable Type	Multi-Pair
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.5 mm
Jacket (Insulation) Diameter [diameter]	0.374 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Black
Number of Conductors	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Cable Type	Features	Shield Type	Jacket Color	Number of Conductors	Shield Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 3108A 0105000	Copper Tinned	Multi-Pair	Drain Wire	Braid Foil	Black	6	Aluminum Copper Tinned	300 V	1.346 mm	0.053 in	65 % 100 %	9.5 mm	0.374 in	Foam High Density Polyethylene (FHDPE)	-20 C	60 °C	Poly-Vinyl Chloride (PVC)	22 AWG	7	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 6.01

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Black 22 AWG Foil, Braid 5000' (1524.0m)
