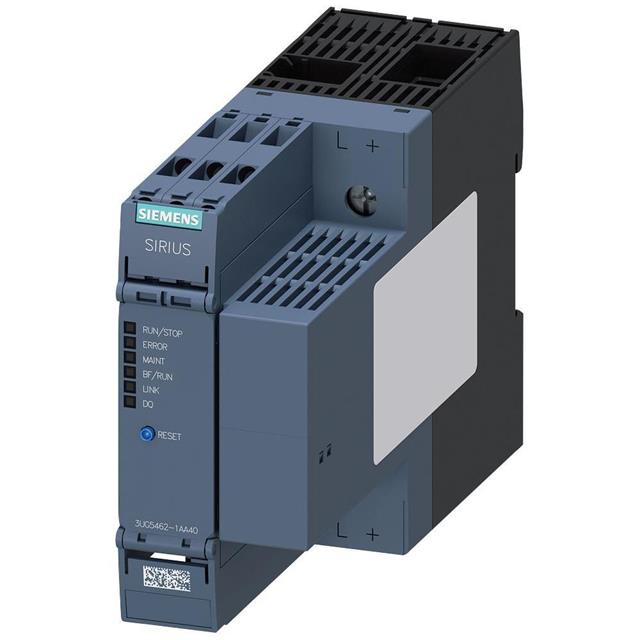

3UG54621AA40

Active

Siemens

DC LOAD MONITORING RELAY 0...63A

Search across all available documentation for this part.

Active

Siemens

DC LOAD MONITORING RELAY 0...63A

Technical Specifications

Parameters and characteristics for this part

Specification	3UG54621AA40

Delay Time [Max]	999 Sec
Delay Time [Min]	0 s
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Trip Range [Max]	800 V DC
Trip Range [Min]	0 mA DC
Type	Voltage Sensing DC, Current Sensing DC
Voltage - Supply	24 VDC

Part	Delay Time [Min]	Delay Time [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Trip Range [Max]	Trip Range [Min]	Voltage - Supply
Siemens 3UG54621AA40	0 s	999 Sec	Current Sensing DC Voltage Sensing DC	-25 °C	60 °C	DIN Rail	800 V DC	0 mA DC	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1936.87

General part information

Current Sensing DC, Voltage Sensing DC 24VDC
