BG220VACP

Active

Pflitsch

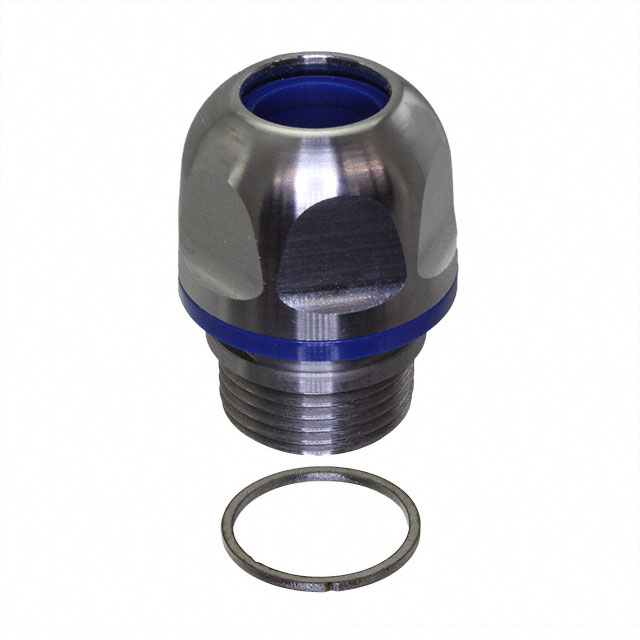

CABLE GLAND 8.89-11.94MM M20

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 8.89-11.94MM M20

Technical Specifications

Parameters and characteristics for this part

Specification	BG220VACP

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	11.94 mm
Outside Cable Diameter (Max) [Max]	0.47 "
Outside Cable Diameter (Min) [Min] [diameter]	8.89 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.35 "
Panel Hole Size	0.787 in
Panel Hole Size	20 mm
Thread Length	0.354 in
Thread Length	9 mm
Thread Size	M20x1.5
Type	Cable Gland

Part	Thread Length	Thread Length	Includes	Thread Size	Ingress Protection	Color	Material	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Pflitsch BG220VATRICP	0.354 in	9 mm	Sealing Ring	M20x1.5	IP68/IP69 - Dust Tight Water Resistant Waterproof	Silver	Brass Nickel Plated	Cable Gland	9 mm	0.354 in	85 °C	-40 °C	0.787 in	20 mm	0.472 in	12 mm
Pflitsch BG220VACP	0.354 in	9 mm	Sealing Ring	M20x1.5	IP66 IP68 IP69	Silver	Stainless Steel	Cable Gland	8.89 mm	0.35 "	85 °C	-40 °C	0.787 in	20 mm			11.94 mm	0.47 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M20x1.5 Silver
