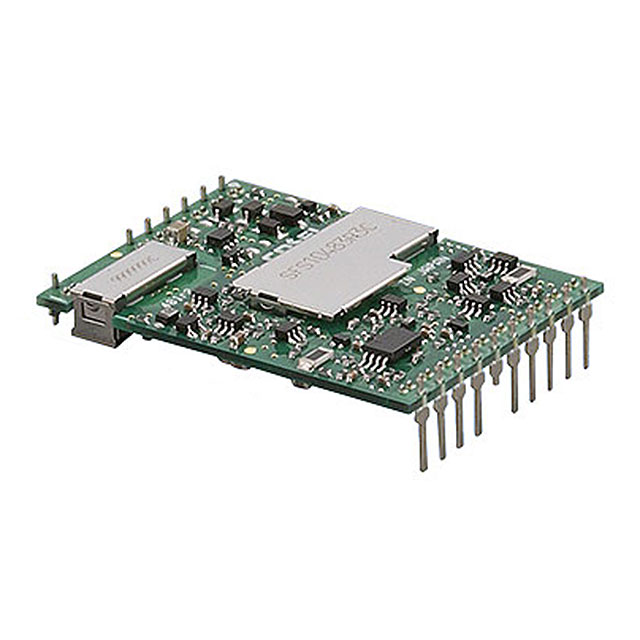

SFS104815C
ObsoleteCosel USA, Inc.
DC DC CONVERTER 15V
SFS104815C
ObsoleteCosel USA, Inc.
DC DC CONVERTER 15V
Description
General part information
SFS104815 Series
Isolated Module DC DC Converter 1 Output 15V 700mA 36V - 76V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SFS104815C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 700 mA |
| Efficiency | 88 % |
| Features | Remote On/Off, OCP, OVP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 17 Leads |
| Package Name | 20-DIP Module |
| Size / Dimension Height | 0.2 in |
| Size / Dimension Length | 1.52 in |
| Size / Dimension Width | 1.07 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 76 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 15 V |
