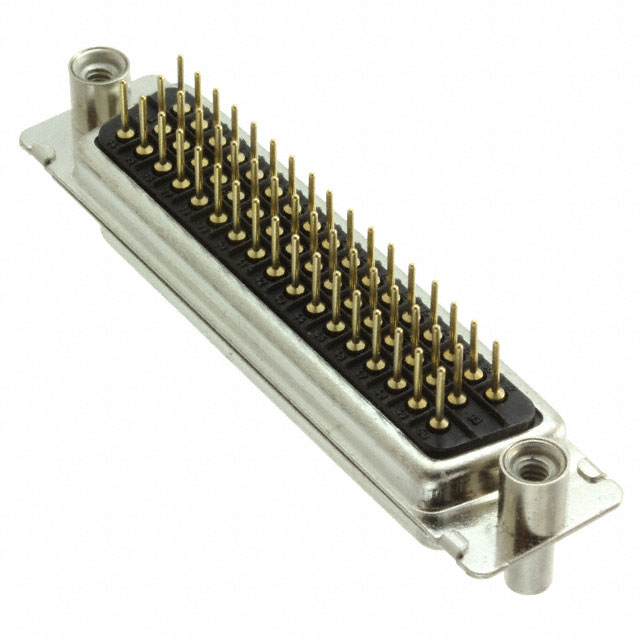

164A12169X

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	164A12169X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	125 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Contact Finish	Contact Type	Flange Feature	Number of Positions	Mounting Type	Color	Termination	Material Flammability Rating	Number of Rows	Current Rating (Amps)	Connector Style	Shell Size, Connector Layout	Connector Type	Contact Material	Contact Finish Thickness	Shell Size, Connector Layout
Amphenol CONEC 164A12159X	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	8 çin	0.203 çm	125 VDC	Gold	Signal	4-40	37	Through Hole	Black	Solder	UL94 V-0	2	7.5 A	D-Sub	4 (DC C)	Receptacle Female Sockets	Copper Alloy
Amphenol CONEC 164A12169X	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled			125 VDC	Gold	Signal	4-40	50	Through Hole	Black	Solder	UL94 V-0	3	7.5 A	D-Sub		Receptacle Female Sockets	Copper Alloy	Flash	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 16.24

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
