794912-1

Active

TE Connectivity AMP Connectors

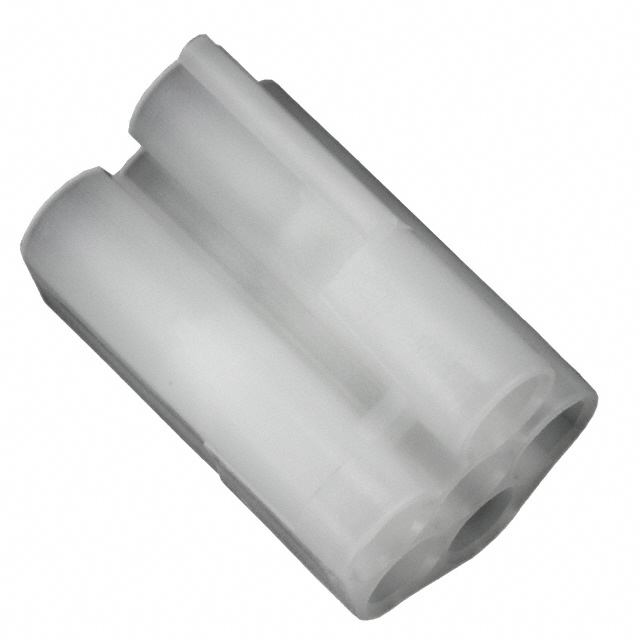

CONN CAP HSNG MALE 6POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN CAP HSNG MALE 6POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	794912-1	794912 Series

Connector Type	Cap Housing	Cap Housing
Contact Shape	Circular	Circular
Contact Type	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock
Housing Color	Natural	Red, Natural
Material Flammability Rating	UL94 V-2, UL94 V-0	UL94 V-2, UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

CONN CAP HSNG MALE 6POS INLINE

Part	Contact Type	Housing Color	Number of Positions	Contact Shape	Fastening Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shielding	Orientation	Material Flammability Rating	Note	Type
TE Connectivity AMP Connectors 794912-2	Crimp	Red	6	Circular	Latch Lock	Free Hanging (In-Line)	105 ░C	-55 °C	Cap Housing	Unshielded	Keyed	UL94 V-0, UL94 V-2	Contacts Not Included	For Male Pins
TE Connectivity AMP Connectors 794912-1	Crimp	Natural	6	Circular	Latch Lock	Free Hanging (In-Line)	105 ░C	-55 °C	Cap Housing	Unshielded	Keyed	UL94 V-0, UL94 V-2	Contacts Not Included	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Power) Position Circular Connector Cap Housing Free Hanging (In-Line)
