182-015-113R171 - 182-015-112-171, 182-015-113R171

182-015-113R171

Active
MH Connectors

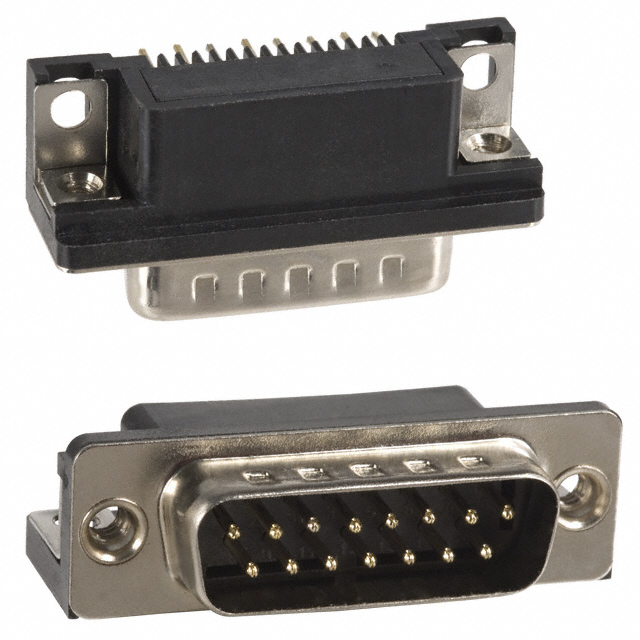

D SUB CONNECTOR, RIGHT ANGLE, DB15, 15 CONTACTS, PLUG, SOLDER, DA, 182 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference GuideDatasheet+3
182-015-113R171 - 182-015-112-171, 182-015-113R171

182-015-113R171

Active
MH Connectors

D SUB CONNECTOR, RIGHT ANGLE, DB15, 15 CONTACTS, PLUG, SOLDER, DA, 182 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsBackshell Reference GuideDatasheet+3

Technical Specifications

Parameters and characteristics for this part

Specification182-015-113R171
Backset Spacing8.08 mm
Backset Spacing0.318 "
ColorBlack
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesGrounding Indents, Ground Strap
Flange FeatureHousing/Shell (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions15
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout2
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 2.62
10$ 2.28
25$ 2.18
70$ 2.13
140$ 2.04
280$ 1.84
490$ 1.70
980$ 1.45
2450$ 1.36
NewarkEach 500$ 1.76
1000$ 1.66

Description

General part information

182-015 Series

The 182 series 0.318-inch footprint economy version right angle D-sub Connectors. It has gold flash-plated brass contact with PA9T insulator and nickel plated, steel shell. It also has copper alloy nickel-plated rivet, SPCC tin-plated board lock and zinc alloy nickel-plated screw lock.
