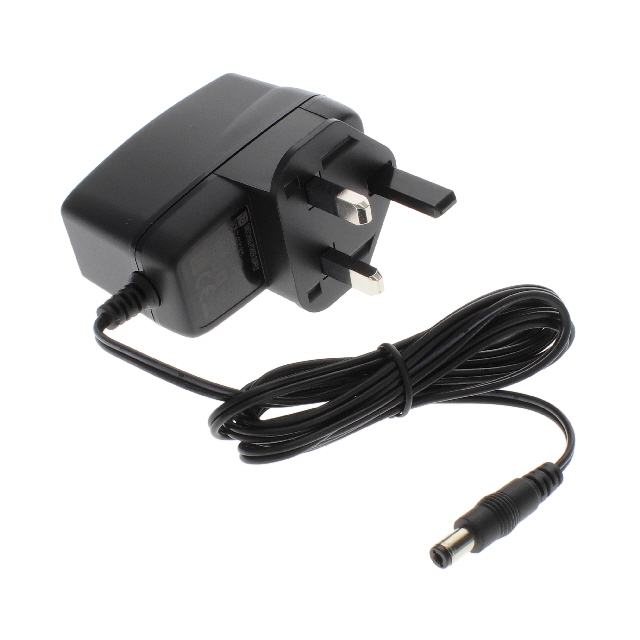

AA10K-050A-R

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA10K-050A-R	AA10K Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	IEC	IEC
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	2 A	2 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class I)	Wall Mount (Class I)
Input Connector	BS 1363	BS 1363
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption [Max]	75 mW	75 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	USB Micro, Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	10 W	10 W
Region Utilized	United Kingdom	United Kingdom
Size / Dimension [x]	2.8 in	2.8 in
Size / Dimension [x]	71.2 mm	71.2 mm
Size / Dimension [y]	1.34 in	1.34 in
Size / Dimension [y]	34 mm	34 mm
Size / Dimension [z]	2.19 "	2.19 "
Size / Dimension [z]	55.5 mm	55.5 mm
Standard Number	60950-1	60950-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	5 V	5 V

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Standard Number	Approval Agency	Output Connector	Efficiency	Cord Length	Cord Length	Power (Watts)	Input Type	Region Utilized	Current - Output (Max) [Max]	Applications	Voltage - Output	Form	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Polarization	Output Connector [diameter]	Output Connector [x]
Phihong USA AA10K-050A(M)-R	90 VAC	264 VAC	75 mW	60950-1	IEC	USB Micro	Level VI	1.5 m	59 in	10 W	Fixed Blade	United Kingdom	2 A	ITE (Commercial)	5 V	Wall Mount (Class I)	1.34 in	2.19 "	55.5 mm	2.8 in	34 mm	71.2 mm	40 °C	0 °C	BS 1363
Phihong USA AA10K-050A-R	90 VAC	264 VAC	75 mW	60950-1	IEC	Barrel Plug	Level VI	1.5 m	59 in	10 W	Fixed Blade	United Kingdom	2 A	ITE (Commercial)	5 V	Wall Mount (Class I)	1.34 in	2.19 "	55.5 mm	2.8 in	34 mm	71.2 mm	40 °C	0 °C	BS 1363	Positive Center	2.1 mm, 5.5 mm	9.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 10 W AC/DC External Wall Mount (Class I) Adapter Fixed Blade Input
