3385-6614

Active

3M (TC)

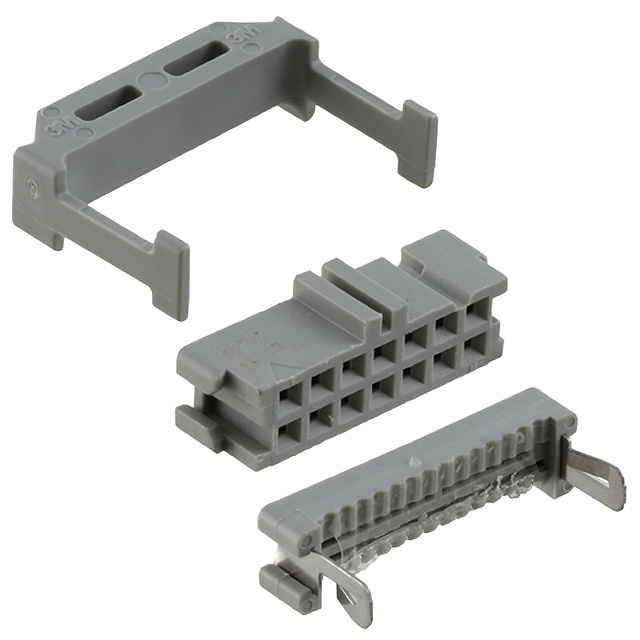

CONN RCPT 14P IDC 26-28AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 14P IDC 26-28AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3385-6614

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

Part	Number of Positions	Mounting Type	Features	Contact Finish	Contact Type	Cable Termination	Connector Type	Row Spacing [x]	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Wire Type	Color	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3385-7014	14	Free Hanging (In-Line)	Closed End Strain Relief	Gold	Female Socket	IDC	Receptacle	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Ribbon Cable	Gray
3M (TC) 3385-6000	14	Free Hanging (In-Line)	Feed Through	Gold	Female Socket	IDC	Receptacle	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Ribbon Cable	Gray
3M (TC) 3385-H600	14	Free Hanging (In-Line)	Feed Through Polarizing Key	Gold	Female Socket	IDC	Receptacle	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Ribbon Cable	Gray	26 AWG	28 AWG	Solid Stranded
3M (TC) 3385-6014	14	Free Hanging (In-Line)	Feed Through Strain Relief	Gold	Female Socket	IDC	Receptacle	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Ribbon Cable	Gray
3M (TC) 3385-7000	14	Free Hanging (In-Line)	Closed End	Gold	Female Socket	IDC	Receptacle	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Ribbon Cable	Gray
3M (TC) 3385-6614	14	Free Hanging (In-Line)	Feed Through Polarizing Key Strain Relief	Gold	Female Socket	IDC	Receptacle	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Ribbon Cable	Gray
3M (TC) 3385-7600	14	Free Hanging (In-Line)		Gold	Female Socket	IDC	Receptacle	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Ribbon Cable	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
