Specification	61276-3

Contact Finish	Tin
Contact Material	Beryllium Copper
Diameter - Barrel	0.058 in
Insulation	Non-Insulated
Insulation Diameter (Max)	0.07 in
Insulation Diameter (Min)	0.045 in
Length - Barrel	0.168 in
Terminal Type	Female, Flag, Receptacle (Socket)
Termination	Crimp
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	19.5 AWG

61276 Series

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Contact Finish	Terminal Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Termination	Diameter - Barrel	Length - Barrel	Contact Material	Insulation

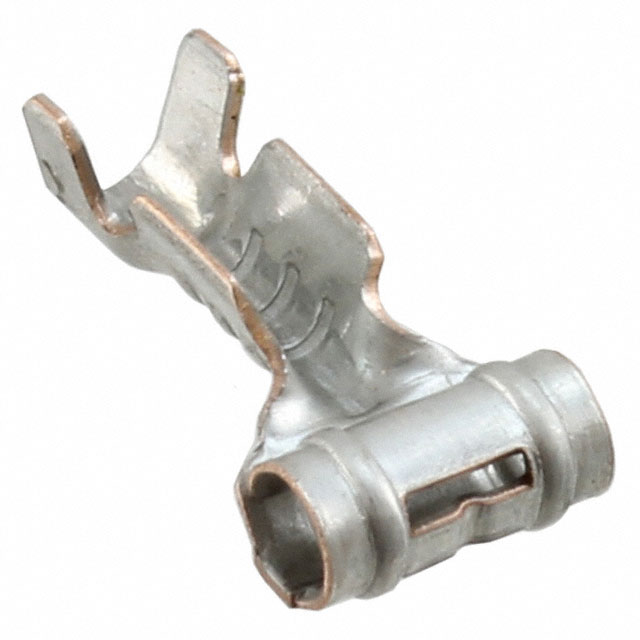

TE Connectivity AMP Connectors 61276-2	0.045 in	0.07 in	Tin	Female Flag Receptacle (Socket)	24 AWG	19.5 AWG	Crimp	0.058 in	0.168 in	Phosphor Bronze	Non-Insulated
TE Connectivity AMP Connectors 61276-3	0.045 in	0.07 in	Tin	Female Flag Receptacle (Socket)	24 AWG	19.5 AWG	Crimp	0.058 in	0.168 in	Beryllium Copper	Non-Insulated

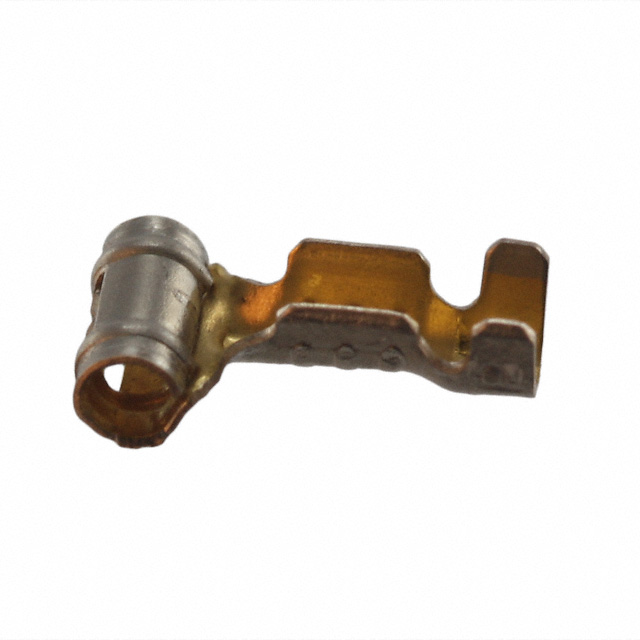

TE Connectivity AMP Connectors 61276-1	0.045 in	0.07 in	Gold	Female Flag Receptacle (Socket)	24 AWG	19.5 AWG	Crimp	0.058 in	0.168 in	Beryllium Copper	Non-Insulated
