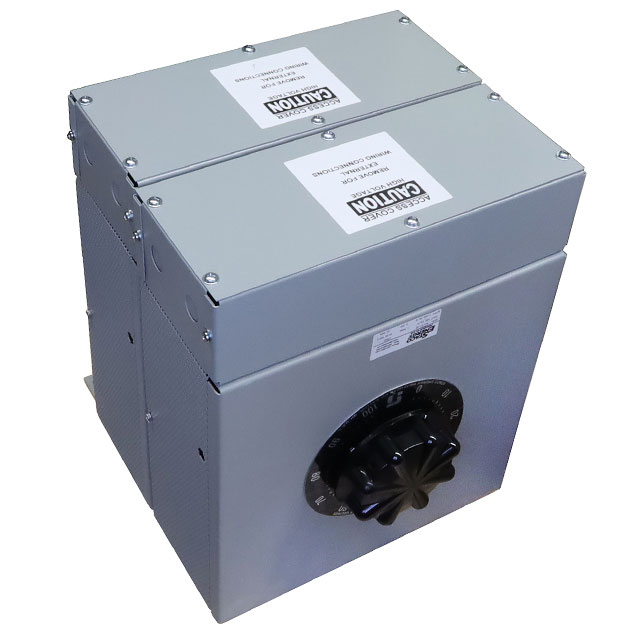

5011CT-2S

Active

Staco Energy Products Company

VARIABLE TRANSFORMER, SINGLE PHASE SERIES, 50AO, 0-280VO, 14KVA, CASED, BENCH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Staco Energy Products Company

VARIABLE TRANSFORMER, SINGLE PHASE SERIES, 50AO, 0-280VO, 14KVA, CASED, BENCH ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

280VAC Terminals Output 50A (14kVA) Constant Current Variable Transformer Input Terminals

Specification	5011CT-2S	5011 Series

Constant Current Load - Max	-	28 - 49 kVA
Constant Current Load - Max	-	56kVA
Constant Current Load - Max	-	12.1 - 36.4 kVA
Constant Current Load - Max [Max]	50 A	50 - 450 A
Output Type	Terminals	Terminals
Size	-	358.65 mm
Size	-	336.55 mm
Size [x]	21.56 in	15.12 - 25 in
Size [x]	547.62 mm	384.05 - 635 mm
Size [y]	508 mm	352.55 - 565.8 mm
Size [y]	20 in	13.88 - 22.276 in
Size [z]	13.25 in	13.25 - 70.5 "
Size [z]	336.55 mm	336.55 - 1790.7 mm
Type	Panel Mount	Panel Mount
Voltage - Output	280 VAC	140 - 280 VAC
Voltage - Supply	240 VAC	120 - 240 VAC

Part	Type	Size [x]	Size [y]	Size [y]	Size [x]	Size [z]	Size [z]	Voltage - Supply	Voltage - Output	Output Type	Constant Current Load - Max [Max]	Constant Current Load - Max	Constant Current Load - Max	Constant Current Load - Max
Staco Energy Products Company 5011-6Y	Panel Mount	17.5 in	13.88 in	352.55 mm	444.5 mm	41.54 "	1055.12 mm	240 VAC	280 VAC	Terminals
Staco Energy Products Company 5011-7P	Panel Mount							120 VAC	140 VAC	Terminals	350 A	49 kVA
Staco Energy Products Company 5011-4PS	Panel Mount							240 VAC	280 VAC	Terminals	100 A	28 kVA
Staco Energy Products Company 5011E-7P	Panel Mount							120 VAC	140 VAC	Terminals	350 A	49 kVA
Staco Energy Products Company 5011E-8P	Panel Mount							120 VAC	140 VAC	Terminals	400 A		56kVA
Staco Energy Products Company 5011E-6D	Panel Mount	25 in	22.27 in	565.66 mm	635 mm	54.75 in	1390.65 mm	120 VAC	140 VAC	Terminals	150 A			36.4 kVA
Staco Energy Products Company 5011-6P	Panel Mount							120 VAC	140 VAC	Terminals	300 A	42 kVA
Staco Energy Products Company 5011-9P	Panel Mount							120 VAC	140 VAC	Terminals	450 A
Staco Energy Products Company 5011-2D	Panel Mount	15.88 in	13.88 in	352.55 mm	403.35 mm	13.56 in	344.42 mm	120 VAC	140 VAC	Terminals	50 A			12.1 kVA
Staco Energy Products Company 5011CT-2S	Panel Mount	21.56 in	20 in	508 mm	547.62 mm	13.25 in	336.55 mm	240 VAC	280 VAC	Terminals	50 A
