AV2521M724Q04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON DPDT 3A 250V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON DPDT 3A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	AV2521M724Q04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Features	Power Symbol, Moving LED Ring
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V

Part	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Type	Termination Style	Actuator Type	Actuator Marking	Mounting Type	Circuit	Current Rating (Amps)	Mechanical Life	Color - Actuator/Cap	Illumination Voltage (Nominal)	Ingress Protection	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Illumination Type, Color	Electrical Life	Features
TE Connectivity Raychem Cable Protection AV2521E112Q04	On-On	55 °C	-20 C	Anti-Vandal Illuminated	Solder Lug	Button Flush Round	No Marking	Panel Mount Front	DPDT	3 A	500000 Cycles	Silver	12 VDC	IP67 - Dust Tight Waterproof	25.2 mm	250 V	LED White	50000 Cycles
TE Connectivity Raychem Cable Protection AV2521E124Q04	On-On	55 °C	-20 C	Anti-Vandal Illuminated	Solder Lug	Button Flush Round	No Marking	Panel Mount Front	DPDT	3 A	500000 Cycles	Silver	24 V	IP67 - Dust Tight Waterproof	25.2 mm	250 V	LED White	50000 Cycles
TE Connectivity Raychem Cable Protection AV2521E612Q04	On-On	55 °C	-20 C	Anti-Vandal Illuminated	Solder Lug	Button Flush Round	No Marking	Panel Mount Front	DPDT	3 A	500000 Cycles	Silver	12 VDC	IP67 - Dust Tight Waterproof	25.2 mm	250 V	Green LED	50000 Cycles
TE Connectivity Raychem Cable Protection AV2521M724Q04	On-On	55 °C	-20 C	Anti-Vandal Illuminated	Solder Lug	Button Flush Round	No Marking	Panel Mount Front	DPDT	3 A	500000 Cycles	Silver	24 V	IP67 - Dust Tight Waterproof	25.2 mm	250 V	Blue LED	50000 Cycles	Moving LED Ring Power Symbol

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

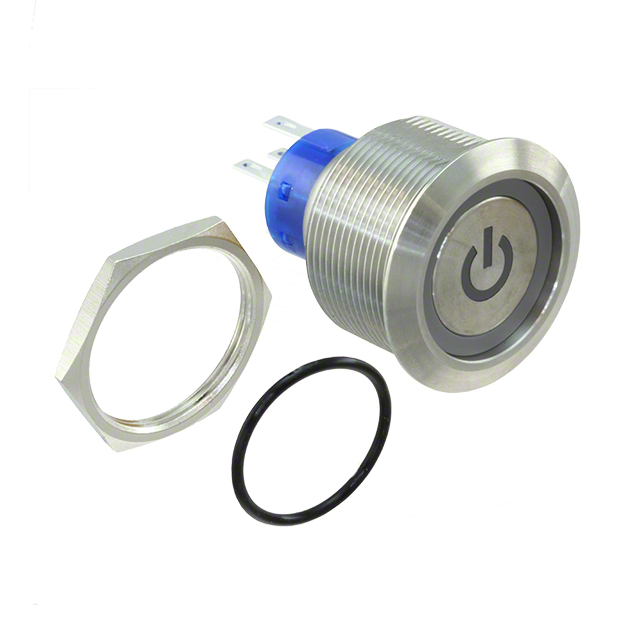

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
