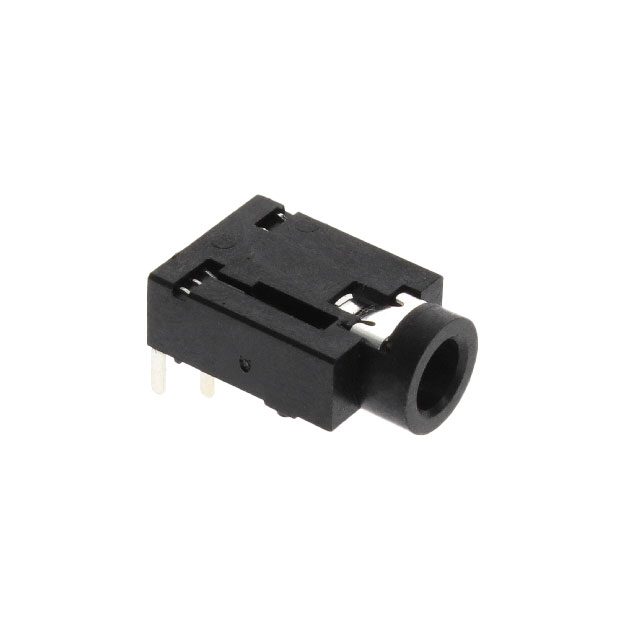

ASJ-99H-R-HT-T/R
ActiveAdam Tech
AUDIO JACK
Deep-Dive with AI
Search across all available documentation for this part.
ASJ-99H-R-HT-T/R
ActiveAdam Tech
AUDIO JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASJ-99H-R-HT-T/R |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | Three Switches |
| Mating Length/Depth | 0.551 in |
| Mating Length/Depth | 14 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 6 Contacts |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.77 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.52 | |||
| Tape & Reel (TR) | 500 | $ 0.49 | ||
| 1000 | $ 0.47 | |||
| 1500 | $ 0.46 | |||
| 2500 | $ 0.44 | |||
| 3500 | $ 0.43 | |||
| 5000 | $ 0.42 | |||
| 12500 | $ 0.39 | |||
| 25000 | $ 0.38 | |||
Description
General part information
ASJ-99H Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
