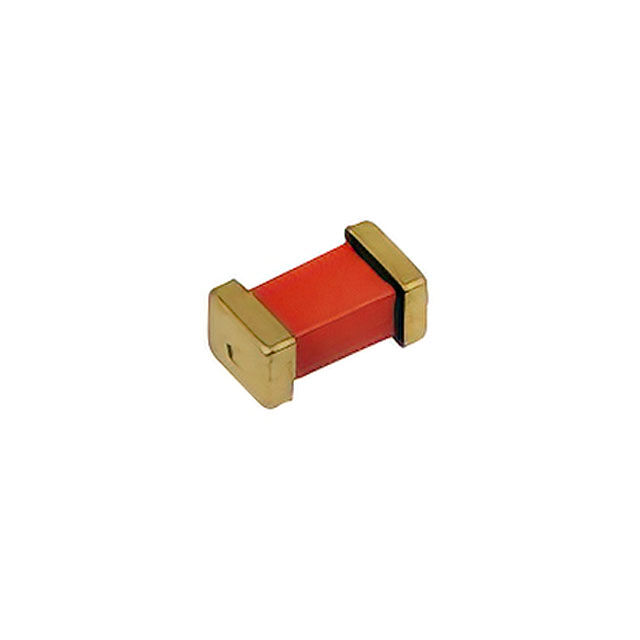

CWR06HC336KB/PR

Active

Vishay Sprague

CAP TANT 33UF 10% 15V 2915

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CWR06HC336KB/PR

Active

Vishay Sprague

CAP TANT 33UF 10% 15V 2915

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 31.81
		10	$ 25.96
		50	$ 23.62
	Digi-Reel®	1	$ 31.81
		10	$ 25.96
		50	$ 23.62
	Tape & Reel (TR)	100	$ 22.90
		200	$ 22.30
		300	$ 22.00

Description

General part information

CWR06 Series

33 µF Conformal Coated Tantalum Capacitors 15 V 2915 (7338 Metric) 900mOhm

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CWR06HC336KB/PR	CWR06 Series

Capacitance	33 ÁF	1 - 47 ÁF
ESR (Equivalent Series Resistance)	900 mOhm	1 - 900 mOhm
Failure Rate	B (0.1%)	B (0.1%), M (1%), R (0.01%)
Features	High Reliability	High Reliability
Grade	Military	Military
Height - Seated (Max)	-	1.65 mm
Height - Seated (Max)	-	0.065 - 0.085 "
Height - Seated (Max)	-	2.16 mm
Height - Seated (Max) [Max]	3.17 mm	3.17 mm
Height - Seated (Max) [Max]	0.125 "	0.125 "
Manufacturer Size Code	H	H, G, A, F, E, B
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2915	2915, 2711, 1005 (2512 Metric), 2214, 2010
Package / Case	7338 Metric	7338 Metric, 6728 Metric, 5634 Metric, 5125 Metric
Qualification	MIL-PRF-55365/4	MIL-PRF-55365/4
Size / Dimension [x]	7.24 mm	2.54 - 7.24 mm
Size / Dimension [x]	0.285 in	0.1 - 0.285 in
Size / Dimension [y]	0.15 "	0.05 - 0.15 "
Size / Dimension [y]	3.81 mm	1.27 - 3.81 mm
Tolerance	10 %	10 - 20 %
Type	Conformal Coated	Conformal Coated
Voltage - Rated	15 V	10 - 50 V

CWR06 Series

CAP TANT 33UF 10% 15V 2915

Part	Package / Case	Package / Case	Manufacturer Size Code	Voltage - Rated	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Failure Rate	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Capacitance	Mounting Type	Tolerance	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Grade	Qualification	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Vishay Sprague CWR06HC336KB/PR	2915	7338 Metric	H	15 V	900 mOhm	-55 °C	125 °C	B (0.1%)	7.24 mm	0.15 "	3.81 mm	0.285 in	High Reliability	33 ÁF	Surface Mount	10 %	Conformal Coated	3.17 mm	0.125 "	Military	MIL-PRF-55365/4
Vishay Sprague CWR06MC475KB/PR	2711	6728 Metric	G	35 V	1.5 Ohm	-55 °C	125 °C	B (0.1%)	6.73 mm	0.11 in	2.79 mm	0.265 in	High Reliability	4.7 µF	Surface Mount	10 %	Conformal Coated	3.17 mm	0.125 "	Military	MIL-PRF-55365/4
Vishay Sprague CWR06FC105MM	1005 (2512 Metric)		A	10 V	12 Ohm	-55 °C	125 °C	M (1%)	2.54 mm	0.05 "	1.27 mm	0.1 in	High Reliability	1 µF	Surface Mount	20 %	Conformal Coated			Military	MIL-PRF-55365/4	1.65 mm	0.065 "
Vishay Sprague CWR06NC475KB/PR	2915	7338 Metric	H	50 VDC	1.5 Ohm	-55 °C	125 °C	B (0.1%)	7.24 mm	0.15 "	3.81 mm	0.285 in	High Reliability	4.7 µF	Surface Mount	10 %	Conformal Coated	3.17 mm	0.125 "	Military	MIL-PRF-55365/4
Vishay Sprague CWR06JC226KB/PR	2915	7338 Metric	H	20 V	900 mOhm	-55 °C	125 °C	B (0.1%)	7.24 mm	0.15 "	3.81 mm	0.285 in	High Reliability	22 µF	Surface Mount	10 %	Conformal Coated	3.17 mm	0.125 "	Military	MIL-PRF-55365/4
Vishay Sprague CWR06KC156KB/PR	2915	7338 Metric	H	25 VDC	1 Ohms	-55 °C	125 °C	B (0.1%)	7.24 mm	0.15 "	3.81 mm	0.285 in	High Reliability	15 µF	Surface Mount	10 %	Conformal Coated	3.17 mm	0.125 "	Military	MIL-PRF-55365/4
Vishay Sprague CWR06FC105KB/PR	1005 (2512 Metric)		A	10 V	12 Ohm	-55 °C	125 °C	B (0.1%)	2.54 mm	0.05 "	1.27 mm	0.1 in	High Reliability	1 µF	Surface Mount	10 %	Conformal Coated			Military	MIL-PRF-55365/4	1.65 mm	0.065 "
Vishay Sprague CWR06FC156KB/PR	2214	5634 Metric	F	10 V	2.5 Ohm	-55 °C	125 °C	B (0.1%)	5.59 mm	0.135 in	3.43 mm	0.22 in	High Reliability	15 µF	Surface Mount	10 %	Conformal Coated			Military	MIL-PRF-55365/4		0.085 in	2.16 mm
Vishay Sprague CWR06NC105KB/PR	2010	5125 Metric	E	50 VDC	6 Ohms	-55 °C	125 °C	B (0.1%)	5.08 mm	0.1 in	2.54 mm	0.2 in	High Reliability	1 µF	Surface Mount	10 %	Conformal Coated			Military	MIL-PRF-55365/4	1.65 mm	0.065 "
Vishay Sprague CWR06NC105MR	2010	5125 Metric	E	50 VDC	6 Ohms	-55 °C	125 °C	R (0.01%)	5.08 mm	0.1 in	2.54 mm	0.2 in	High Reliability	1 µF	Surface Mount	20 %	Conformal Coated			Military	MIL-PRF-55365/4	1.65 mm	0.065 "
