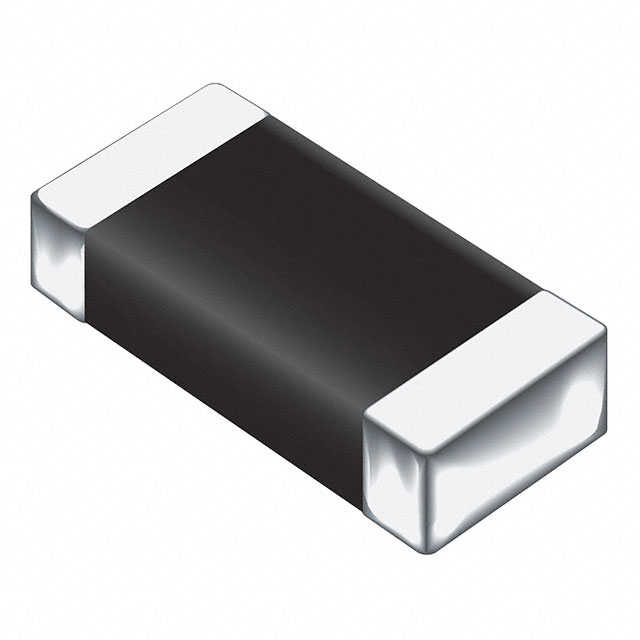

CGA1206MLA-40181E
ActiveBourns Inc.
TVS VARISTOR, 40 V, 56 V, CHIPGUARD AUTOMOTIVE MLA SERIES, 110 V, 1206 [3216 METRIC]
Deep-Dive with AI
Search across all available documentation for this part.
CGA1206MLA-40181E
ActiveBourns Inc.
TVS VARISTOR, 40 V, 56 V, CHIPGUARD AUTOMOTIVE MLA SERIES, 110 V, 1206 [3216 METRIC]
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CGA1206MLA-40181E |
|---|---|
| Capacitance @ Frequency | 180 pF |
| Current - Surge | 200 A |
| Energy | 1 J |
| Grade | Automotive |
| Maximum AC Volts [Max] | 40 V |
| Maximum DC Volts [Max] | 56 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Qualification | AEC-Q200 |
| Varistor Voltage (Max) [Max] | 77 V |
| Varistor Voltage (Min) [Min] | 63 V |
| Varistor Voltage (Typ) | 70 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CGA1206 Series
70 V 200 A Varistor 1 Circuit Surface Mount, MLCV 1206 (3216 Metric)
