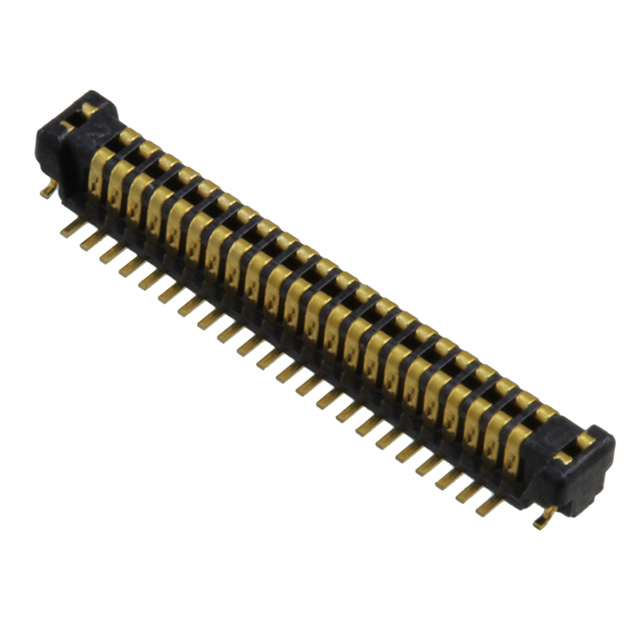

AXT444154

Active

Panasonic Electric Works

CONN HDR 44POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 44POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT444154

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.049 in
Height Above Board	1.25 mm
Mated Stacking Heights	2.5 mm, 1.5 mm
Mounting Type	Surface Mount
Number of Positions	44
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board	Height Above Board	Number of Rows	Mated Stacking Heights	Contact Finish	Number of Positions	Features	Mounting Type	Connector Type	Pitch [x]	Pitch [x]
Panasonic Electric Works AXT444154	0.049 in	1.25 mm	2	1.5 mm 2.5 mm	Gold	44	Board Guide Solder Retention	Surface Mount	Header Center Strip Contacts	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 4.66

General part information

44 Position Connector Header, Center Strip Contacts Surface Mount Gold
