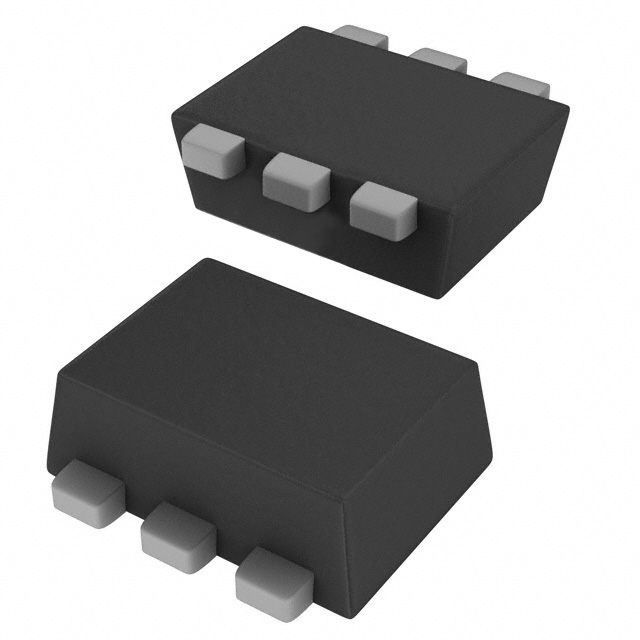

CMRDM3575 TR PBFREE

Active

Central Semiconductor Corp

TRANS MOSFET N/P-CH SI 20V 0.16A/0.14A 6-PIN SOT-963 T/R

Search across all available documentation for this part.

Active

Central Semiconductor Corp

TRANS MOSFET N/P-CH SI 20V 0.16A/0.14A 6-PIN SOT-963 T/R

Technical Specifications

Parameters and characteristics for this part

Specification	CMRDM3575 TR PBFREE

Configuration	N and P-Channel
Current - Continuous Drain (Id) @ 25°C	140 mA, 160 mA
Drain to Source Voltage (Vdss)	20 V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	0.46 nC
Input Capacitance (Ciss) (Max) @ Vds	9 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SOT-963
Power - Max [Max]	125 mW
Rds On (Max) @ Id, Vgs [Max]	3 Ohm
Supplier Device Package	SOT-963
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	FET Feature	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs [Max]	Mounting Type	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Package / Case	Drain to Source Voltage (Vdss)	Technology	Configuration	Power - Max [Max]	Gate Charge (Qg) (Max) @ Vgs
Central Semiconductor Corp CMRDM3575 TR PBFREE	150 °C	-65 °C	Logic Level Gate	1 V	9 pF	3 Ohm	Surface Mount	SOT-963	140 mA 160 mA	SOT-963	20 V	MOSFET (Metal Oxide)	N and P-Channel	125 mW	0.46 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 20V 160mA, 140mA 125mW Surface Mount SOT-963
