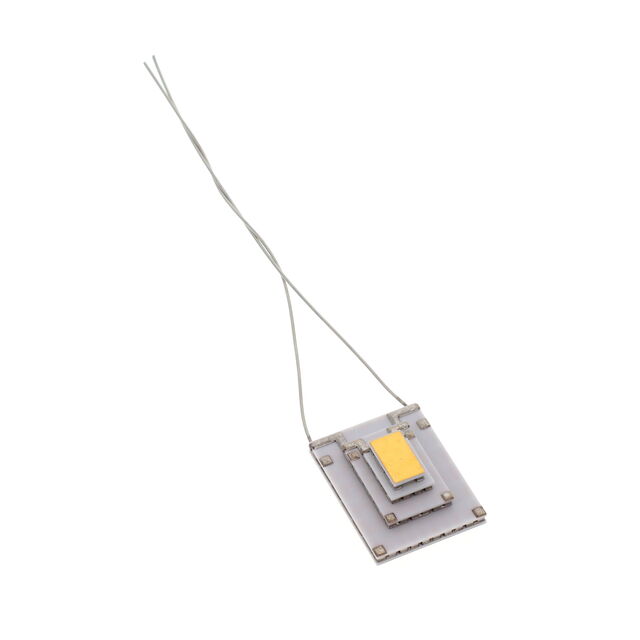

SP2394-07AB

Active

Marlow Industries, Inc.

MULTISTAGE TEM21.72X28.27X8.69MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM21.72X28.27X8.69MM

Technical Specifications

Parameters and characteristics for this part

Specification	SP2394-07AB

Current - Max [Max]	5.1 A
Delta Tmax @ Th	27 °C, 130 °C
Features	Exterior Metallization (Both Sides), Lead Wires
Height [z]	8.69 mm
Number of Stages	4
Qmax @ Th	4.5 W
Resistance	1.56 Ohms
Size / Dimension [x]	28.27 mm
Size / Dimension [y]	21.72 mm
Voltage - Max [Max]	8.5 V

Part	Qmax @ Th	Delta Tmax @ Th	Current - Max [Max]	Resistance	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Features	Height [z]	Number of Stages
Marlow Industries, Inc. SP2394-03AB	4.5 W	27 °C 130 °C	5.1 A	1.56 Ohms	28.27 mm	21.72 mm	8.5 V	Lead Wires	8.69 mm	4
Marlow Industries, Inc. SP2394-07AB	4.5 W	27 °C 130 °C	5.1 A	1.56 Ohms	28.27 mm	21.72 mm	8.5 V	Exterior Metallization (Both Sides) Lead Wires	8.69 mm	4
Marlow Industries, Inc. SP2394-04AB	4.5 W	27 °C 130 °C	5.1 A	1.56 Ohms	28.27 mm	21.72 mm	8.5 V	Exterior Metallization Lead Wires	8.69 mm	4
Marlow Industries, Inc. SP2394-05AB	4.5 W	27 °C 130 °C	5.1 A	1.56 Ohms	28.27 mm	21.72 mm	8.5 V	Exterior Metallization (Both Sides) Lead Wires	8.69 mm	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 4.5W @ 27°C 5.1 A 85°C
