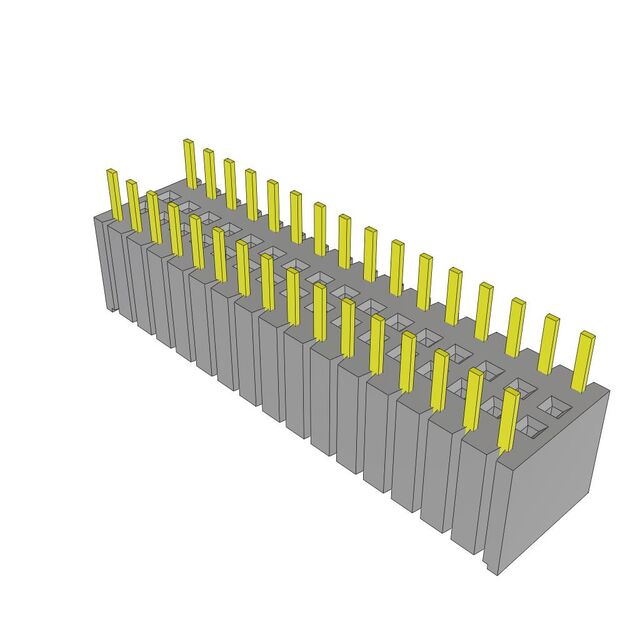

BSW-116-04-L-D

Active

Samtec Inc.

CONN RCPT 32POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSW-116-04-L-D

Active

Samtec Inc.

CONN RCPT 32POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-116-04-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	0.165 in
Contact Length - Post [x]	4.19 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

BSW-116 Series

Part	Number of Rows	Fastening Type	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Type	Contact Material	Termination	Insulation Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions
Samtec Inc. BSW-116-04-S-D	2	Push-Pull	0.35 in	8.89 mm	30 Áin	0.76 Ám	Bottom Mount Through Hole	2.54 mm	0.1 in	All	Tin	Black	Square	0.1 in	2.54 mm	Female Socket	Phosphor Bronze	Solder	Polyethylene Terephthalate (PET) Glass Filled	UL94 V-0	-55 °C	125 °C	0.165 in	4.19 mm	Gold	Breakaway Receptacle
Samtec Inc. BSW-116-04-S-E	1	Push-Pull	0.35 in	8.89 mm	30 Áin	0.76 Ám	Bottom Mount Through Hole			All	Tin	Black	Square	0.1 in	2.54 mm	Female Socket	Phosphor Bronze	Solder	Polyethylene Terephthalate (PET) Glass Filled	UL94 V-0	-55 °C	125 °C			Gold	Breakaway Receptacle	2.54 mm	0.1 in	16
Samtec Inc. BSW-116-04-S-S	1	Push-Pull	0.35 in	8.89 mm	30 Áin	0.76 Ám	Bottom Mount Through Hole			All	Tin	Black	Square	0.1 in	2.54 mm	Female Socket	Phosphor Bronze	Solder	Polyethylene Terephthalate (PET) Glass Filled	UL94 V-0	-55 °C	125 °C			Gold	Breakaway Receptacle	4.32 mm	0.17 in	16
Samtec Inc. BSW-116-24-G-S	1	Push-Pull	0.35 in	8.89 mm	20 µin	0.51 µm	Bottom Mount Through Hole			All	Tin	Black	Square	0.1 in	2.54 mm	Female Socket	Phosphor Bronze	Solder	Polyethylene Terephthalate (PET) Glass Filled	UL94 V-0	-55 °C	125 °C			Gold	Breakaway Receptacle	4.32 mm	0.17 in	16
Samtec Inc. BSW-116-04-L-D	2	Push-Pull	0.35 in	8.89 mm	10 çin	0.25 çm	Bottom Mount Through Hole	2.54 mm	0.1 in	All	Tin	Black	Square	0.1 in	2.54 mm	Female Socket	Phosphor Bronze	Solder	Polyethylene Terephthalate (PET) Glass Filled	UL94 V-0	-55 °C	125 °C	0.165 in	4.19 mm	Gold	Receptacle
Samtec Inc. BSW-116-04-S-M	1	Push-Pull	0.35 in	8.89 mm	30 Áin	0.76 Ám	Bottom Mount Through Hole			All	Tin	Black	Square	0.1 in	2.54 mm	Female Socket	Phosphor Bronze	Solder	Polyethylene Terephthalate (PET) Glass Filled	UL94 V-0	-55 °C	125 °C	0.125 in	3.18 mm	Gold	Breakaway Receptacle			16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.25

Description

General part information

BSW-116 Series

32 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Bottom Mount Gold
