MAX9937EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAX9937
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX9937EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAX9937
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9937EVKIT+ | MAX9937 Series |
|---|---|---|
| -3db Bandwidth | 350 kHz | 350 kHz |
| Amplifier Type | Current Sense | Current Sense |
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 - Single | 1 - Single |
| Current - Input Bias | - | 2 µA |
| Current - Output / Channel | 22 mA | 22 mA |
| Current - Supply | - | 20 µA |
| Current - Supply (Main IC) | 20 µA | 20 µA |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | Single-Ended | Single-Ended |
| Package / Case | - | SC-70-5, 5-TSSOP, SOT-353 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | SC-70-5 |
| Utilized IC / Part | MAX9937 | MAX9937 |
| Voltage - Input Offset | - | 300 çV |
| Voltage - Supply Span (Max) | - | 5.5 V |
| Voltage - Supply Span (Min) | - | 2.7 V |
| Voltage - Supply, Single/Dual (±) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply, Single/Dual (±) [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 66.24 | |
MAX9937 Series
IC CURR SENSE 1 CIRCUIT SC70-5
| Part | Supplier Device Package | Voltage - Supply Span (Max) [Max] | Voltage - Input Offset | -3db Bandwidth | Voltage - Supply Span (Min) [Min] | Current - Output / Channel | Mounting Type | Current - Supply | Current - Input Bias | Package / Case | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Amplifier Type | Board Type | Channels per IC | Output Type | Supplied Contents | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Utilized IC / Part | Current - Supply (Main IC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9937AXK+T | SC-70-5 | 5.5 V | 300 çV | 350 kHz | 2.7 V | 22 mA | Surface Mount | 20 µA | 2 µA | 5-TSSOP, SC-70-5, SOT-353 | 1 | 125 °C | -40 °C | Current Sense | ||||||||
Analog Devices Inc./Maxim Integrated MAX9937EVKIT+ | 350 kHz | 22 mA | Current Sense | Fully Populated | 1 - Single | Single-Ended | Board(s) | 5.5 V | 2.7 V | MAX9937 | 20 µA |
Description
General part information
MAX9937 Series

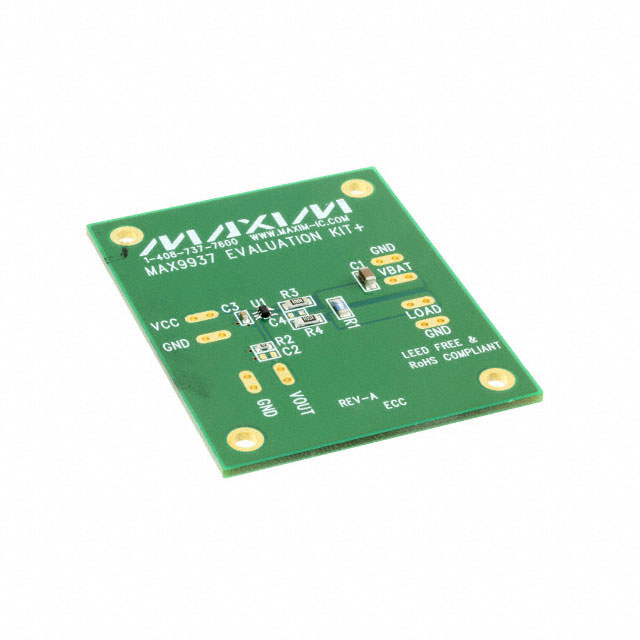

MAX9937 1 - Single Channels per IC Current Sense Amplifier Evaluation Board
