51S207-308N5

Active

Rosenberger

CONN BNC PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN BNC PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	51S207-308N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	223, 400
Cable Group	RG-142B
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms

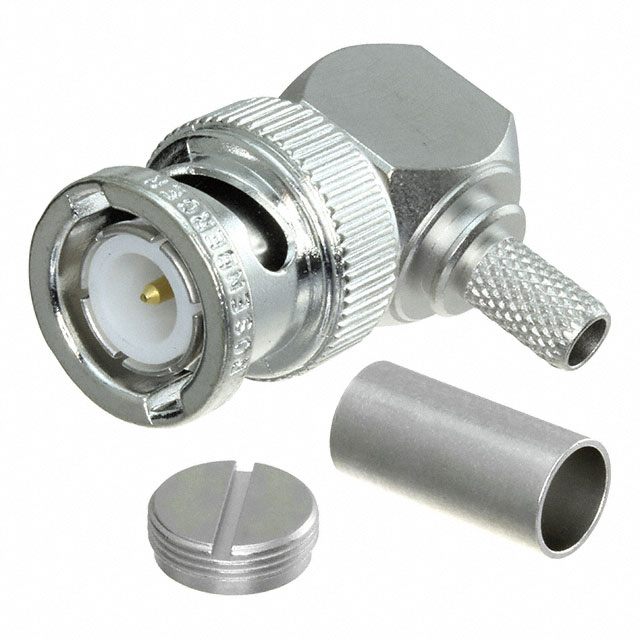

Includes	1 Connector, 1 Ferrule, 1 End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	400 V

Part	Body Material	Body Finish	Cable Group	Cable Group	Housing Color	Fastening Type	Shield Termination	Dielectric Material	Mating Cycles	Center Contact Material	Number of Ports	Impedance	Connector Style	Mounting Type	Includes	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type
Rosenberger 51S207-306N5	Brass	White Bronze	141	RG-58C	Silver	Bayonet Lock	Crimp	Polytetrafluoroethylene (PTFE)	500	Bronze	1	50 Ohms	BNC	Free Hanging (In-Line) Right Angle	1 Connector 1 End Cap 1 Ferrule	10 GHz	Solder	Gold	155 °C	-55 °C	400 V	Male Pin Plug
Rosenberger 51S207-303N5	Brass	White Bronze		RG-316	Silver	Bayonet Lock	Crimp	Polytetrafluoroethylene (PTFE)	500	Brass	1	50 Ohms	BNC	Free Hanging (In-Line) Right Angle		10 GHz	Solder	Gold	155 °C	-55 °C	400 V	Male Pin Plug
Rosenberger 51S207-308N5	Brass	White Bronze	223 400	RG-142B	Silver	Bayonet Lock	Crimp	Polytetrafluoroethylene (PTFE)	500	Bronze	1	50 Ohms	BNC	Free Hanging (In-Line) Right Angle	1 Connector 1 End Cap 1 Ferrule	10 GHz	Solder	Gold	155 °C	-55 °C	400 V	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 15.64

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
