W22RPB-FB18-PK

Active

c3controls

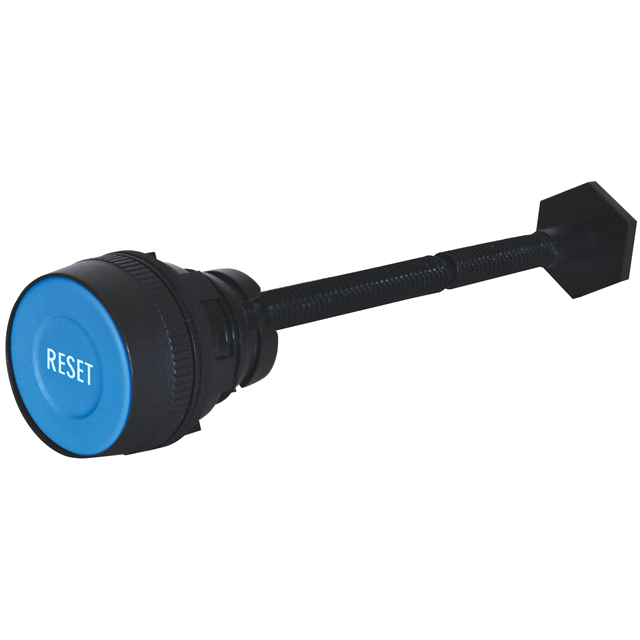

22MM RPB FLSH BE CP RESET W/ROD

Search across all available documentation for this part.

Active

c3controls

22MM RPB FLSH BE CP RESET W/ROD

Technical Specifications

Parameters and characteristics for this part

Specification	W22RPB-FB18-PK

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Color - Actuator/Cap	Blue
Current Rating (Amps)	2.5 A, 10 A
Ingress Protection	IP66
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22.5 mm
Type	Standard
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

22MM RPB FLSH BE CP RESET W/ROD

Part	Current Rating (Amps)	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Mechanical Life	Type
c3controls W22RPB-FB18-PK	2.5 A, 10 A	Blue	22.5 mm	IP66	-40 °C	55 °C	No Marking	72 V	28 V	Button, Flush, Round	Panel Mount, Rear	5000000 Cycles	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.44

General part information

Pushbutton Switch Standard Panel Mount, Rear
