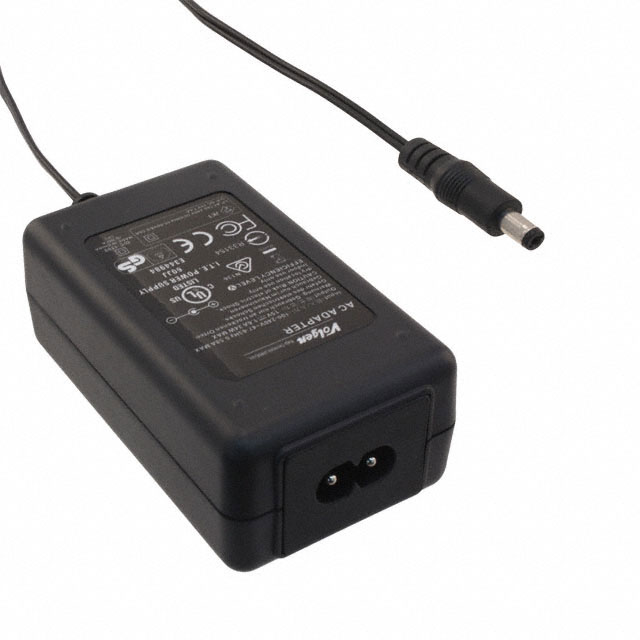

KTPS24-0925DT 2P

Obsolete

Volgen + Furuno

AC/DC DESKTOP ADAPTER 9V 23W

Deep-Dive with AI

Search across all available documentation for this part.

KTPS24-0925DT 2P

Obsolete

Volgen + Furuno

AC/DC DESKTOP ADAPTER 9V 23W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

KTPS24 Series

9V 23 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KTPS24-0925DT 2P	KTPS24 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	IEC	cUL, PSE, UL, RCM, CB, CE, GS, IEC
Cord Length	1.5 m	1 - 1.5 m
Cord Length	59 in	39.4 - 59 in
Current - Output (Max) [Max]	2.5 A	1 - 500 A
Efficiency	Level V	Level VI, Level V
Form	Desktop (Class II)	Wall Mount (Class II), Desktop (Class II)
Input Connector	IEC 320-C8	NEMA 1-15P, Multi-Blade, IEC 320-C8
Input Type	Cord	Fixed Blade, Multi-Blade (Included), Cord
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug, Barrel Plug R/A
Output Connector	-	9.5 mm
Output Connector	-	5.5 mm
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	2.1 - 9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	23 W	20 - 24 W
Region Utilized	International	North America, International
Size / Dimension [x]	3.46 "	2.83 - 3.46 "
Size / Dimension [x]	88 mm	2.95 - 88 mm
Size / Dimension [y]	50 mm	1.41 - 51.8 mm
Size / Dimension [y]	1.97 "	1.34 - 2.04 in
Size / Dimension [z]	1.34 in	1.34 - 2.05 in
Size / Dimension [z]	34 mm	2.58 - 65.6 mm
Standard Number	60950-1	60950-1
Voltage - Input [Max]	240 VAC	240 VAC
Voltage - Input [Min]	100 VAC	100 VAC
Voltage - Output	9 V	5 - 48 V
Weight	0.366 lb	0.348 - 0.366 lb
Weight	166.01 g	157.85 - 166.01 g

KTPS24 Series

AC/DC WALL MNT ADAPTER 5.9V 24W

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Form	Region Utilized	Applications	Efficiency	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Polarization	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector	Cord Length	Cord Length	Input Type	Operating Temperature [Max]	Standard Number	Weight	Weight
Volgen + Furuno KTPS24-06040WA-VI-P2	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	cUL, PSE, UL	Wall Mount (Class II)	North America	ITE (Commercial)	Level VI	24 W	4 A	240 VAC	100 VAC	5.9 V	Positive Center	NEMA 1-15P	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Fixed Blade	40 °C
Volgen + Furuno KTPS24-07530MP-VI-P1	1.41 in, 35.8 mm	2.95 in, 75 mm				2.58 in, 65.6 mm	CB, CE, cUL, GS, PSE, RCM, UL	Wall Mount (Class II)	International	ITE (Commercial)	Level VI	23 W	3 A	240 VAC	100 VAC	7.5 V	Positive Center	Multi-Blade	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Multi-Blade (Included)	40 °C
Volgen + Furuno KTPS24-05040WA-VI-P1R	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	cUL, PSE, UL	Wall Mount (Class II)	North America	ITE (Commercial)	Level VI	20 W	4 A	240 VAC	100 VAC	5 V	Positive Center	NEMA 1-15P	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug R/A	1.5 m	59 in	Fixed Blade	40 °C
Volgen + Furuno KTPS24-24010MP-VI-P2	1.41 in, 35.8 mm	2.95 in, 75 mm				2.58 in, 65.6 mm	CB, CE, cUL, GS, PSE, RCM, UL	Wall Mount (Class II)	International	ITE (Commercial)	Level VI	24 W	1 A	240 VAC	100 VAC	24 V	Positive Center	Multi-Blade	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Multi-Blade (Included)	40 °C
Volgen + Furuno KTPS24-05040WA-VI-P1	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	IEC	Wall Mount (Class II)	North America	ITE (Commercial)	Level VI	24 W	4 A	240 VAC	100 VAC	5 V	Positive Center	NEMA 1-15P	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Fixed Blade	40 °C	60950-1
Volgen + Furuno KTPS24-07530WA-VI-P1R	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	cUL, PSE, UL	Wall Mount (Class II)	North America	ITE (Commercial)	Level VI	23 W	3 A	240 VAC	100 VAC	7.5 V	Positive Center	NEMA 1-15P	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug R/A	1.5 m	59 in	Fixed Blade	40 °C
Volgen + Furuno KTPS24-09025WA-VI-P1	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	cUL, PSE, UL	Wall Mount (Class II)	North America	ITE (Commercial)	Level VI	23 W	2.5 A	240 VAC	100 VAC	9 V	Positive Center	NEMA 1-15P	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Fixed Blade	40 °C
Volgen + Furuno KTPS24-24010WA-VI-P1	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	IEC	Wall Mount (Class II)	North America	ITE (Commercial)	Level VI	24 W	1 A	240 VAC	100 VAC	24 V	Positive Center	NEMA 1-15P	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Fixed Blade	40 °C	60950-1
Volgen + Furuno KTPS24-07530WA-VI-P1	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	cUL, PSE, UL	Wall Mount (Class II)	North America	ITE (Commercial)	Level VI	23 W	3 A	240 VAC	100 VAC	7.5 V	Positive Center	NEMA 1-15P	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Fixed Blade	40 °C
Volgen + Furuno KTPS24-0925DT 2P	50 mm	88 mm	3.46 "	1.34 in	1.97 "	34 mm	IEC	Desktop (Class II)	International	ITE (Commercial)	Level V	23 W	2.5 A	240 VAC	100 VAC	9 V	Positive Center	IEC 320-C8	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	1.5 m	59 in	Cord	40 °C	60950-1	0.366 lb	166.01 g
