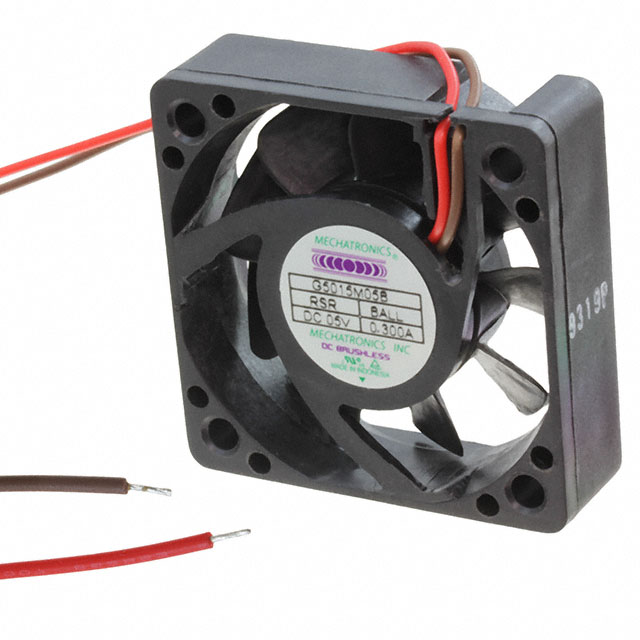

G5015M05B-RSR

Active

Mechatronics Fan Group

FAN AXIAL 50X15MM BALL 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet +1

G5015M05B-RSR

Active

Mechatronics Fan Group

FAN AXIAL 50X15MM BALL 5VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.98
		10	$ 11.43
		25	$ 10.75
		50	$ 10.34
		100	$ 9.53
		250	$ 8.91
		500	$ 8.78

Description

General part information

G5015 Series

Fan Tubeaxial 5VDC Square - 50mm L x 50mm H Ball 11.0 CFM (0.308mł/min) 2 Wire Leads

Documents

Technical documentation and resources

DC Lead Wire Specs

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	G5015M05B-RSR	G5015 Series

Air Flow	0.308 mł/min	0.308 - 0.448 mł/min
Air Flow	11 CFM	11 - 16 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.18 - 400 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	24 dB	24 - 34 dB
RPM	4500 RPM	4500 - 6500 RPM
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [z]	50 mm	50 mm
Static Pressure	0.11 in H2O	0.11 - 0.22 in H2O
Static Pressure	27.4 Pa	27.4 - 54.8 Pa
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	5 V	5 - 24 VDC
Weight	34.93 g	34.93 g
Weight	0.077 lb	0.077 lb
Width [x]	15 mm	15 mm

G5015 Series

FAN AXIAL 50X15MM 24VDC WIRE

Part	Weight	Weight	Static Pressure	Static Pressure	Noise	Bearing Type	Width [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	RPM	Material - Blade	Approval Agency	Features	Current Rating (Amps)	Termination	Fan Type	Air Flow	Air Flow
Mechatronics Fan Group G5015M24B-RSR	34.93 g	0.077 lb	0.11 in H2O	27.4 Pa	24 dB	Ball	15 mm	50 mm	50 mm	24 VDC	4500 RPM	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	Thermal Overload Protector (TOP)	140 mA	2 Wire Leads	Tubeaxial
Mechatronics Fan Group G5015H24B-RSR	34.93 g	0.077 lb	0.17 in H2O	42.3 Pa	29 dB(A)	Ball	15 mm	50 mm	50 mm	24 VDC	5500 RPM	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	Thermal Overload Protector (TOP)	0.18 A	2 Wire Leads	Tubeaxial	13 CFM	0.364 mł/min
Mechatronics Fan Group G5015M05B-RSR	34.93 g	0.077 lb	0.11 in H2O	27.4 Pa	24 dB	Ball	15 mm	50 mm	50 mm	5 V	4500 RPM	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	Thermal Overload Protector (TOP)		2 Wire Leads	Tubeaxial	11 CFM	0.308 mł/min
Mechatronics Fan Group G5015H05B-RSR	34.93 g	0.077 lb	0.17 in H2O	42.3 Pa	29 dB(A)	Ball	15 mm	50 mm	50 mm	5 V	5500 RPM	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	Thermal Overload Protector (TOP)	400 mA	2 Wire Leads	Tubeaxial	13 CFM	0.364 mł/min
Mechatronics Fan Group G5015M12B-RSR	34.93 g	0.077 lb	0.11 in H2O	27.4 Pa	24 dB	Ball	15 mm	50 mm	50 mm	12 VDC	4500 RPM	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	Thermal Overload Protector (TOP)	0.2 A	2 Wire Leads	Tubeaxial
Mechatronics Fan Group G5015E12B-RSR	34.93 g	0.077 lb	0.22 in H2O	54.8 Pa	34 dB(A)	Ball	15 mm	50 mm	50 mm	12 VDC	6500 RPM	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	Thermal Overload Protector (TOP)	400 mA	2 Wire Leads	Tubeaxial	16 CFM	0.448 mł/min
