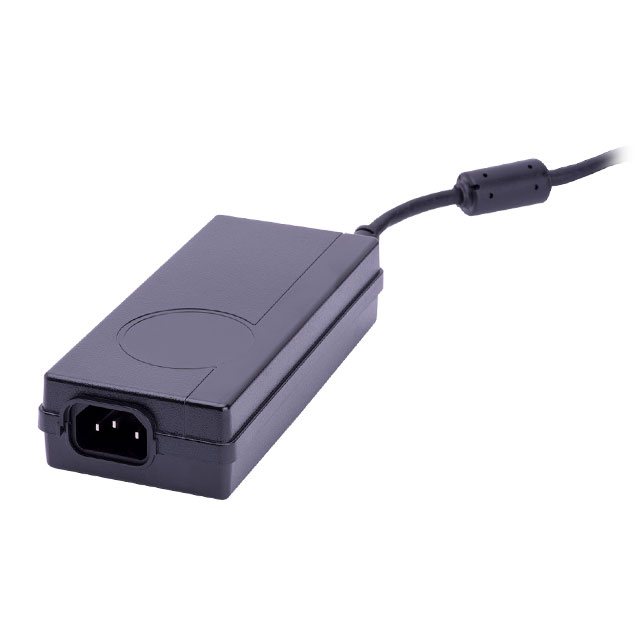

TE90A1503N01

Active

SL POWER / Advanced Energy

PLUG-IN ADAPTER SINGLE-OUT 15V 6A 90W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

PLUG-IN ADAPTER SINGLE-OUT 15V 6A 90W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V 90 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TE90A1503N01	TE90A1503 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Cord Length	45.3 in	45.3 in
Cord Length	1.15 m	1.15 m
Current - Output (Max) [Max]	6 A	6 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Desktop (Class II)	Desktop (Class II), Desktop (Class I)
Input Connector	IEC 320-C8	IEC 320-C8, IEC 320-C14, IEC 320-C18
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	90 W	90 W
Region Utilized	International	International
Size / Dimension [x]	6.02 in	6.02 in
Size / Dimension [x]	153 mm	153 mm
Size / Dimension [y]	68 mm	68 mm
Size / Dimension [y]	2.68 "	2.68 "
Size / Dimension [z]	34.5 mm	34.5 mm
Size / Dimension [z]	1.36 "	1.36 "
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	15 VDC	15 VDC

PLUG-IN ADAPTER SINGLE-OUT 15V 6A 90W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Input Connector	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Form	Output Connector [diameter]	Output Connector [x]	Output Connector	Approval Agency	Polarization	Efficiency	Current - Output (Max) [Max]	Applications	Input Type	Cord Length	Cord Length	Region Utilized	No Load Power Consumption [Max]
SL POWER / Advanced Energy TE90A1503N01	34.5 mm	68 mm	6.02 in	1.36 "	153 mm	2.68 "	90 W	IEC 320-C8	15 VDC	-20 C	70 °C	90 VAC	264 VAC	Desktop (Class II)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	CE	Positive Center	CoC Tier 2, Level VI	6 A	ITE (Commercial)	Cord	45.3 in	1.15 m	International	150 mW
SL POWER / Advanced Energy TE90A1503F01	34.5 mm	68 mm	6.02 in	1.36 "	153 mm	2.68 "	90 W	IEC 320-C14	15 VDC	-20 C	70 °C	90 VAC	264 VAC	Desktop (Class I)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	CE	Positive Center	CoC Tier 2, Level VI	6 A	ITE (Commercial)	Cord	45.3 in	1.15 m	International	150 mW
SL POWER / Advanced Energy TE90A1503Q01	34.5 mm	68 mm	6.02 in	1.36 "	153 mm	2.68 "	90 W	IEC 320-C18	15 VDC	-20 C	70 °C	90 VAC	264 VAC	Desktop (Class II)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	CE	Positive Center	CoC Tier 2, Level VI	6 A	ITE (Commercial)	Cord	45.3 in	1.15 m	International	150 mW
