628-050-322-042

Active

EDAC Inc.

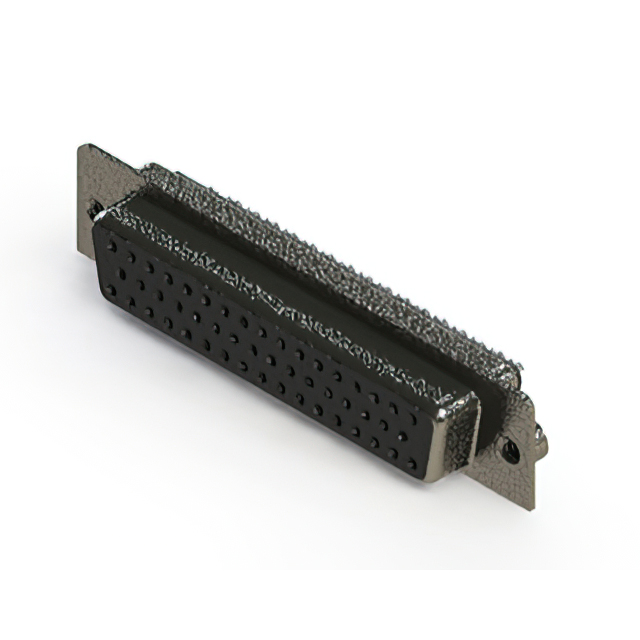

CONN D SUB RCPT 50POS VERT METAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-050-322-042

Active

EDAC Inc.

CONN D SUB RCPT 50POS VERT METAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-050-322-042

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5

628-050 Series

...

Part	Contact Finish Thickness	Connector Type	Flange Feature	Color	Features	Dielectric Material	Connector Style	Termination	Current Rating (Amps)	Shell Size, Connector Layout	Mounting Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material Flammability Rating	Contact Finish	Contact Type	Number of Positions	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 628-050-220-269	Flash	Receptacle Female Sockets	4-40 Board Side	Black	Shielded	Polyester Thermoplastic	D-Sub	Solder	3 A	5	Through Hole	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50
EDAC Inc. 628-050-222-062	Flash	Receptacle Female Sockets	4-40 Board Side	Black	Shielded	Polyester Thermoplastic	D-Sub		3 A	5	Free Hanging (In-Line)	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50	Nickel Plated Steel
EDAC Inc. 628-050-322-042		Receptacle Female Sockets	4-40 Board Side	Black	Shielded	Polyester Thermoplastic	D-Sub		5 A	5	Free Hanging (In-Line)	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50	Nickel Plated Steel	15 µin	0.38 µm
EDAC Inc. 628-050-322-049		Receptacle Female Sockets	4-40 Board Side	Black	Shielded	Polyester Thermoplastic	D-Sub		5 A	5	Free Hanging (In-Line)	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50	Nickel Plated Steel	15 µin	0.38 µm
EDAC Inc. 628-050-222-049	Flash	Receptacle Female Sockets	4-40 Board Side	Black	Shielded	Polyester Thermoplastic	D-Sub		3 A	5	Free Hanging (In-Line)	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50	Nickel Plated Steel
EDAC Inc. 628-050-622-041		Receptacle Female Sockets	4-40 Board Side	Black	Shielded	Polyester Thermoplastic	D-Sub		5 A	5	Free Hanging (In-Line)	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50	Nickel Plated Steel	30 Áin	0.76 Ám
EDAC Inc. 628-050-220-069	Flash	Receptacle Female Sockets	4-40 Board Side	Black	Shielded	Polyester Thermoplastic	D-Sub	Solder	3 A	5	Through Hole	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50	Nickel Plated Steel
EDAC Inc. 628-050-220-247	Flash	Receptacle Female Sockets	4-40 Board Side	Black	Board Lock Shielded	Polyester Thermoplastic	D-Sub	Solder	3 A	5	Through Hole	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50
EDAC Inc. 628-050-220-246	Flash	Receptacle Female Sockets	4-40 Board Side	Black	Board Lock Shielded	Polyester Thermoplastic	D-Sub	Solder	3 A	5	Through Hole	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50
EDAC Inc. 628-050-220-241	Flash	Receptacle Female Sockets	4-40 Board Side	Black	Shielded	Polyester Thermoplastic	D-Sub	Solder	3 A	5	Through Hole	Brass	85 °C	-55 °C	3	UL94 V-0	Gold	Signal and Power	50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	50	$ 10.62

Description

General part information

628-050 Series

50 Position D-Sub Receptacle, Female Sockets Connector
