C3520.41.86

Active

Prysmian Group

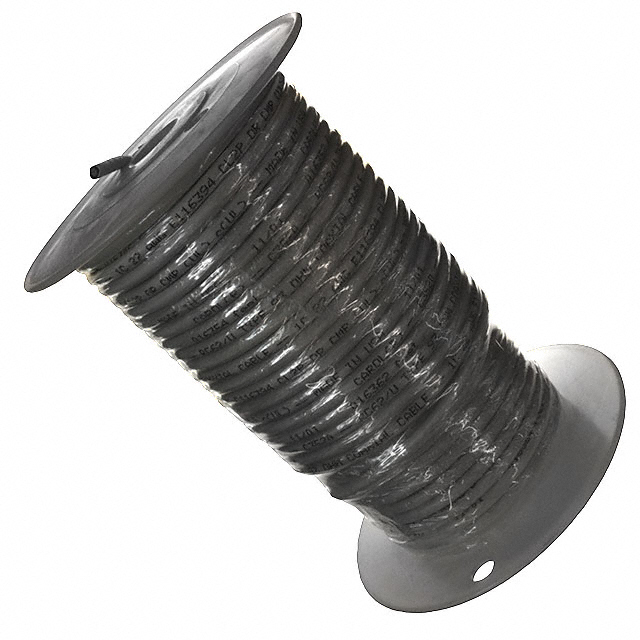

CABLE COAX PLEN RG62 22AWG 1000'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAX PLEN RG62 22AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C3520.41.86

Cable Group	RG-62
Cable Type	Coaxial - Plenum
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	3.56 mm
Dielectric Diameter [diameter]	0.14 in
Dielectric Material	Cellular (Foam) Fluoro-Polymer (Cellular FP)
Impedance	93 Ohms
Jacket (Insulation) Diameter [diameter]	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Natural
Length	304.8 m
Length	1000 ft
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Network, RF Signal
VoP, Velocity of Propagation	84

Part	Cable Group	Jacket Color	Length	Length	Cable Type	Shield Coverage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Dielectric Material	VoP, Velocity of Propagation	Shield Material	Shield Type	Conductor Strand	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Impedance	Usage
Prysmian Group C3520.41.86	RG-62	Natural	304.8 m	1000 ft	Coaxial - Plenum	95 %	3.56 mm	0.14 in	Copper Coated Steel	Cellular (Foam) Fluoro-Polymer (Cellular FP)	84	Copper Bare	Braid	Solid	Poly-Vinyl Chloride (PVC)	5.11 mm	0.201 in	93 Ohms	Network RF Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Plenum Cable 22 AWG (0.32mm²) RG-62 1000.0' (304.80m) 93 Ohms

Technical documentation and resources

No documents available
