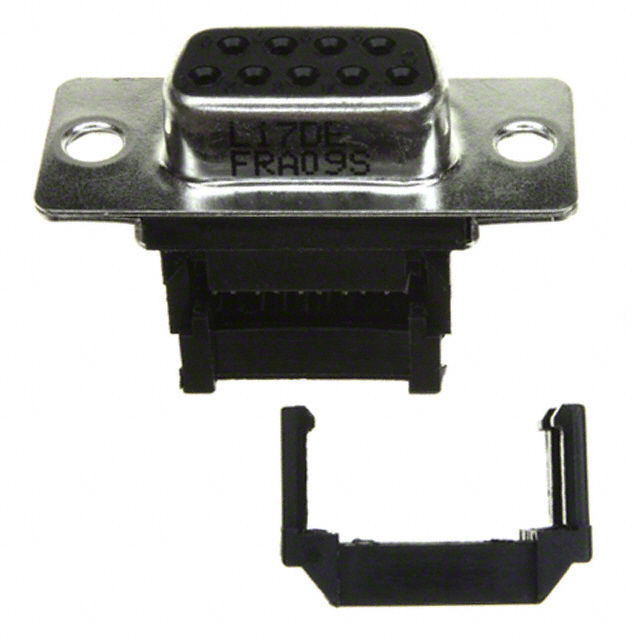

L17DEFRA09S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS IDC
Deep-Dive with AI
Search across all available documentation for this part.
L17DEFRA09S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS IDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L17DEFRA09S |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Feed Through, Strain Relief |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | IDC, Ribbon Cable |
| Voltage Rating | 250 VDC |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.55 | |
| 10 | $ 2.31 | |||
| 25 | $ 2.19 | |||
| 40 | $ 2.14 | |||
| 96 | $ 2.04 | |||
| 288 | $ 1.78 | |||
| 480 | $ 1.73 | |||
| 960 | $ 1.48 | |||
| 2400 | $ 1.37 | |||
Description
General part information
L17DEFRA09 Series
9 Position D-Sub Receptacle, Female Sockets Connector
