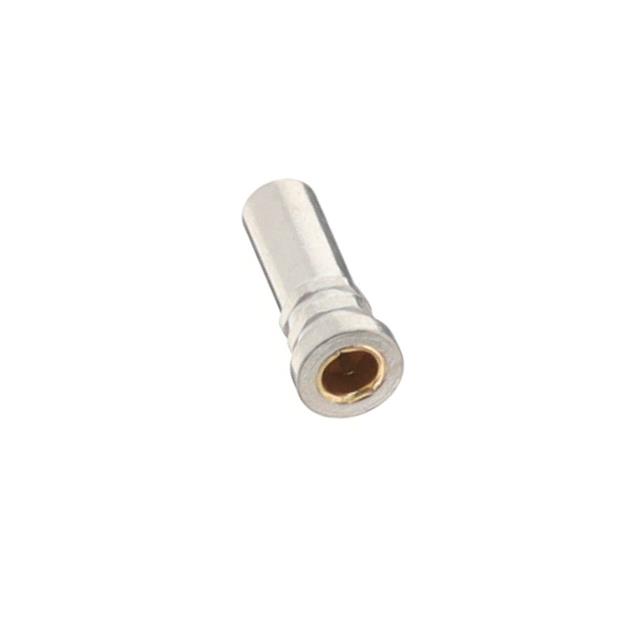

0279-0-15-80-47-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
DocumentsPin Receptacles (metric) ~
Technical Specifications
Parameters and characteristics for this part
| Specification | 0279-0-15-80-47-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.037 " |
| Accepts Pin Diameter [Max] | 0.94 mm |
| Accepts Pin Diameter [Min] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.025 " |
| Accepts Square Pin Size [diameter] | 0.64 mm |
| Accepts Square Pin Size [diameter] | 0.025 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.078 in |
| Flange Diameter [diameter] | 1.98 mm |
| Mounting Hole Diameter [diameter] | 1.57 mm |
| Mounting Hole Diameter [diameter] | 0.062 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.051 in |
| Pin Hole Diameter [diameter] | 1.3 mm |
| Socket Depth | 4.19 mm |
| Socket Depth | 0.165 in |
| Tail Type | No Tail |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.27 | |
| 10 | $ 1.07 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.86 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.78 | |||
| 3000 | $ 0.72 | |||
Description
General part information
0279-0 Series
Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) No Tail Press-Fit, Hex
