32S156-S00L5

Active

Rosenberger

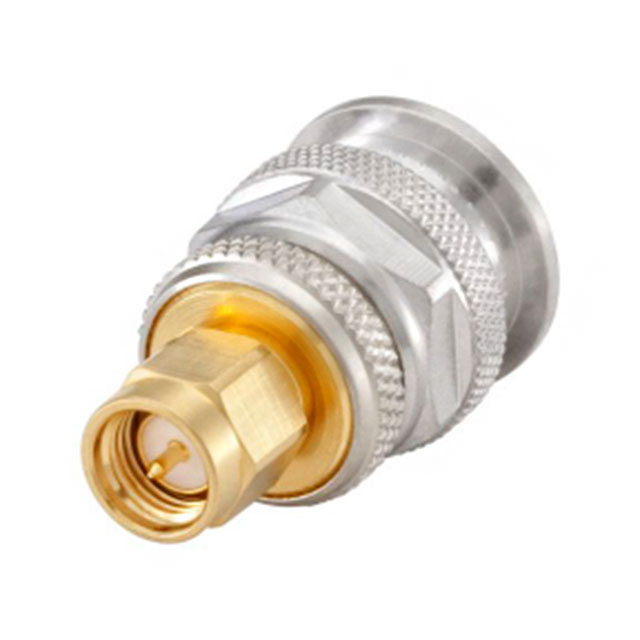

ADAPT SMA PLUG - TNC PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT SMA PLUG - TNC PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	32S156-S00L5

Adapter Series	SMA to TNC
Adapter Type	Plug to Plug
Body Finish	Nickel, Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Material	Impedance	Body Finish	Adapter Type	Dielectric Material	Conversion Type	Style	Convert From (Adapter End)	Adapter Series	Convert To (Adapter End)	Center Contact Material	Mounting Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Plating	Center Gender
Rosenberger 32S156-K00L5	Beryllium Copper Brass	50 Ohms	Gold Nickel	Plug to Jack	Polytetrafluoroethylene (PTFE)	Between Series	Straight	SMA Plug Male Pin	SMA to TNC	Female Socket TNC Jack	Beryllium Copper	Free Hanging (In-Line)	10 GHz	-65 ░C	165 °C	500	Gold
Rosenberger 32S156-S00L5	Beryllium Copper Brass	50 Ohms	Gold Nickel	Plug to Plug	Polytetrafluoroethylene (PTFE)	Between Series	Straight	SMA Plug Male Pin	SMA to TNC	Male Pin TNC Plug	Brass	Free Hanging (In-Line)	10 GHz	-65 ░C	165 °C	500	Gold	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 40.66

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To TNC Plug, Male Pin 50 Ohms
