GSA.8859.A.105111

Active

TAOGLAS

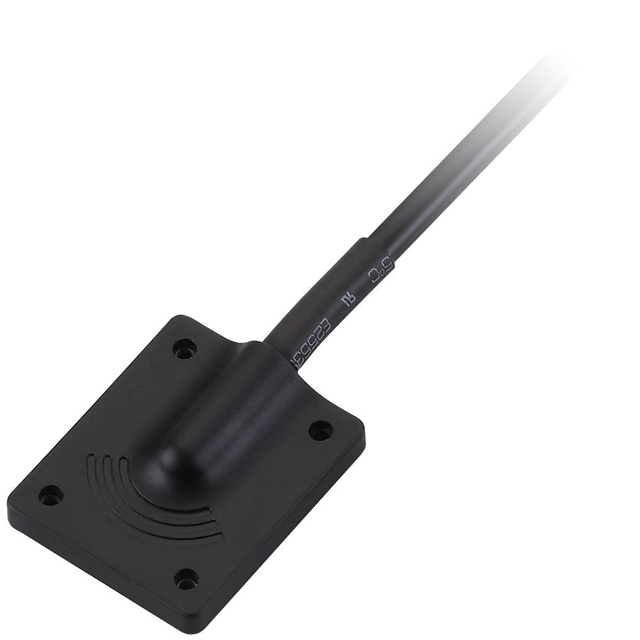

GSA.8859 4DBI 5.9GHZ ADHESIVE MOUNT C-V2X MINIATURE ANTENNA

Search across all available documentation for this part.

Active

TAOGLAS

GSA.8859 4DBI 5.9GHZ ADHESIVE MOUNT C-V2X MINIATURE ANTENNA

Technical Specifications

Parameters and characteristics for this part

GSA.8859 4DBI 5.9GHZ ADHESIVE MOUNT C-V2X MINIATURE ANTENNA

Part	Frequency (Center/Band)	Ingress Protection	Applications	RF Family/Standard	Mounting Type	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Gain	VSWR	Height (Max) [Max]	Height (Max) [Max]	Power - Max [Max]	Return Loss	Antenna Type	Frequency Group
TAOGLAS GSA.8859.A.105111	5.9 GHz	IP67	DSRC	General ISM	Adhesive	1	5.925 GHz	5.85 GHz	4.84 dBi	2	10 mm	0.394 in	5 W	-10 dB	Module	SHF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA DSRC Module SMA Male Adhesive

Technical documentation and resources
