ACDC04-41SURKWA-F01

Active

Kingbright

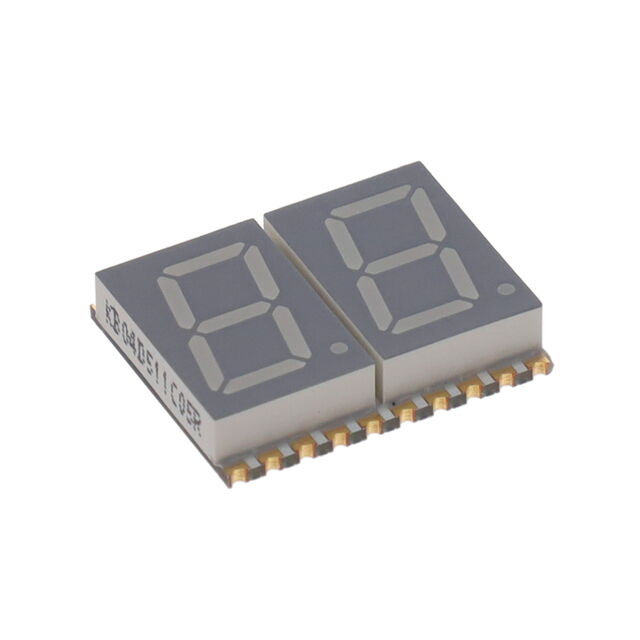

DISPLAY 7-SEG 0.4" DBL RED 20SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACDC04-41SURKWA-F01

Active

Kingbright

DISPLAY 7-SEG 0.4" DBL RED 20SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.09
		10	$ 4.31
		100	$ 3.53
	Tape & Reel (TR)	250	$ 3.53
		500	$ 2.97
		750	$ 2.87
		1250	$ 2.73
		2500	$ 2.61

Description

General part information

ACDC04 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 1.95V 20mA 0.512" H x 0.728" W x 0.148" D (13.00mm x 18.50mm x 3.75mm) 20-SMD, No Lead

Documents

Technical documentation and resources

Specification	ACDC04-41SURKWA-F01	ACDC04 Series

Color	Red	Red, Green
Common Pin	Common Cathode	Common Cathode
Current - Test	20 mA	20 mA
Digit/Alpha Size	10.16 mm	10.16 mm
Digit/Alpha Size [custom]	0.4 in	0.4 in
Display Type	7-Segment	7-Segment
Millicandela Rating	27 mcd	4.7 - 60 mcd
Number of Characters	2	2
Package / Case	20-SMD, No Lead	20-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw	62.5 - 75 mw
Size / Dimension [x]	0.512 in	0.512 in
Size / Dimension [x]	13 mm	13 mm
Size / Dimension [y]	0.728 in	0.728 in
Size / Dimension [y]	18.5 mm	18.5 mm
Size / Dimension [z]	0.148 in	0.148 in
Size / Dimension [z]	3.75 mm	3.75 mm
Voltage - Forward (Vf) (Typ)	1.95 V	1.85 - 2.2 V
Wavelength - Peak	650 nm	565 - 660 nm

Part	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Common Pin	Number of Characters	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Display Type	Current - Test	Digit/Alpha Size	Digit/Alpha Size [custom]	Wavelength - Peak	Millicandela Rating	Color
Kingbright ACDC04-41SEKWA-F01	2.1 V	75 mw	Common Cathode	2	20-SMD, No Lead	0.728 in	0.148 in	0.512 in	18.5 mm	13 mm	3.75 mm	7-Segment	20 mA	10.16 mm	0.4 in	610 nm	60 mcd
Kingbright ACDC04-41SRWA-F01	1.85 V	75 mw	Common Cathode	2	20-SMD, No Lead	0.728 in	0.148 in	0.512 in	18.5 mm	13 mm	3.75 mm	7-Segment	20 mA	10.16 mm	0.4 in	660 nm	14 mcd	Red
Kingbright ACDC04-41SGWA-F01	2.2 V	62.5 mW	Common Cathode	2	20-SMD, No Lead	0.728 in	0.148 in	0.512 in	18.5 mm	13 mm	3.75 mm	7-Segment	20 mA	10.16 mm	0.4 in	565 nm	4.7 mcd	Green
Kingbright ACDC04-41SURKWA-F01	1.95 V	75 mw	Common Cathode	2	20-SMD, No Lead	0.728 in	0.148 in	0.512 in	18.5 mm	13 mm	3.75 mm	7-Segment	20 mA	10.16 mm	0.4 in	650 nm	27 mcd	Red
