3-794624-8

Active

TE Connectivity AMP Connectors

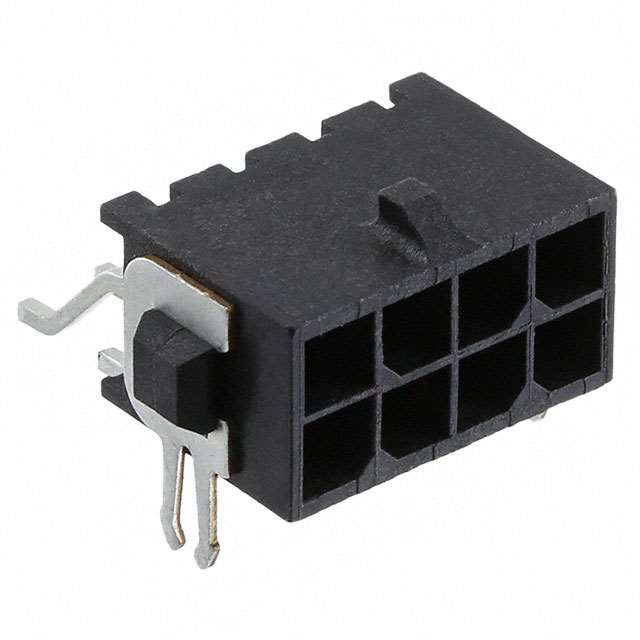

CONN HEADER SMD R/A 8POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

3-794624-8

Active

TE Connectivity AMP Connectors

CONN HEADER SMD R/A 8POS 3MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.14
		10	$ 2.79
		100	$ 2.48
	Tape & Reel (TR)	600	$ 2.28
		1200	$ 2.04
		3000	$ 1.88

Description

General part information

794624 Series

Connector Header Surface Mount, Right Angle 8 position 0.118" (3.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-794624-8	794624 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	100 µin	100 µin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	8	8 - 24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794624 Series

CONN HEADER SMD R/A 8POS 3MM

Part	Insulation Material	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Termination	Number of Rows	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Post	Shrouding	Insulation Height	Insulation Height	Applications	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Type	Number of Positions Loaded	Style	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 3-794624-8	Nylon, Polyamide (PA)	Black	105 ░C	-40 °C	Locking Ramp	Solder	2	250 VDC	2.54 çm	100 çin	Varies by Wire Gauge	Tin	Shrouded - 4 Wall	7.37 mm	0.29 in	General Purpose	Square	3 mm	0.118 in	Brass	0.118 in	3 mm	UL94 V-0	100 µin	2.54 µm	Header	Male Pin	All	Board to Cable/Wire	Surface Mount, Right Angle	8
TE Connectivity AMP Connectors 4-794624-0	Nylon, Polyamide (PA)	Black	105 ░C	-40 °C	Locking Ramp	Solder	2	250 VDC	2.54 çm	100 çin	Varies by Wire Gauge	Tin	Shrouded - 4 Wall	7.37 mm	0.29 in	General Purpose	Square	3 mm	0.118 in	Brass	0.118 in	3 mm	UL94 V-0	100 µin	2.54 µm	Header	Male Pin	All	Board to Cable/Wire	Surface Mount, Right Angle	10
TE Connectivity AMP Connectors 5-794624-0	Nylon, Polyamide (PA)	Black	105 ░C	-40 °C	Locking Ramp	Solder	2	250 VDC	2.54 çm	100 çin	Varies by Wire Gauge	Tin	Shrouded - 4 Wall	7.37 mm	0.29 in	General Purpose	Square	3 mm	0.118 in	Brass	0.118 in	3 mm	UL94 V-0	100 µin	2.54 µm	Header	Male Pin	All	Board to Cable/Wire	Surface Mount, Right Angle	20
TE Connectivity AMP Connectors 5-794624-4	Nylon, Polyamide (PA)	Black	105 ░C	-40 °C	Locking Ramp	Solder	2	250 VDC	2.54 çm	100 çin	Varies by Wire Gauge	Tin	Shrouded - 4 Wall	7.37 mm	0.29 in	General Purpose	Square	3 mm	0.118 in	Brass	0.118 in	3 mm	UL94 V-0	100 µin	2.54 µm	Header	Male Pin	All	Board to Cable/Wire	Surface Mount, Right Angle	24
