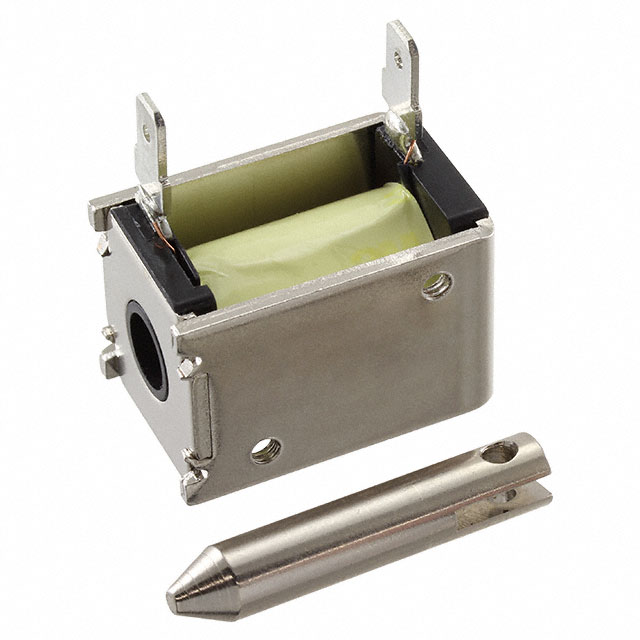

DSOL-0630-05C
ActiveDelta Electronics
DC SOLENOID, OPEN FRAME PULL TYP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSOL-0630-05C |
|---|---|
| DC Resistance (DCR) | 6 Ohm |
| Diameter - Shaft [diameter] | 0.25 in |
| Diameter - Shaft [diameter] | 6.35 mm |
| Duty Cycle | Continuous |
| Mounting Type | Chassis Mount |
| Power (Watts) | 4 W |
| Shaft Detail | Clevis |
| Size / Dimension [x] | 29.46 mm |
| Size / Dimension [x] | 1.16 in |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [y] | 19.05 mm |
| Size / Dimension [z] | 19.05 mm |
| Size / Dimension [z] | 0.75 in |
| Stroke Length | 0.5 in |
| Stroke Length | 12.7 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Open Frame (Pull) |
| Voltage - Rated | 5 V |
| Weight | 0.176 lb |
| Weight | 79.83 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.77 | |
| 10 | $ 15.80 | |||
| 25 | $ 15.01 | |||
| 50 | $ 14.22 | |||
| 100 | $ 13.43 | |||
| 250 | $ 12.24 | |||
| 500 | $ 11.45 | |||
Description
General part information
DSOL-0630 Series
Continuous Duty Solenoid Open Frame (Pull) Type 0.500" (12.70mm) Stroke 5VDC Chassis Mount
