341-056-520-108

Active

EDAC Inc.

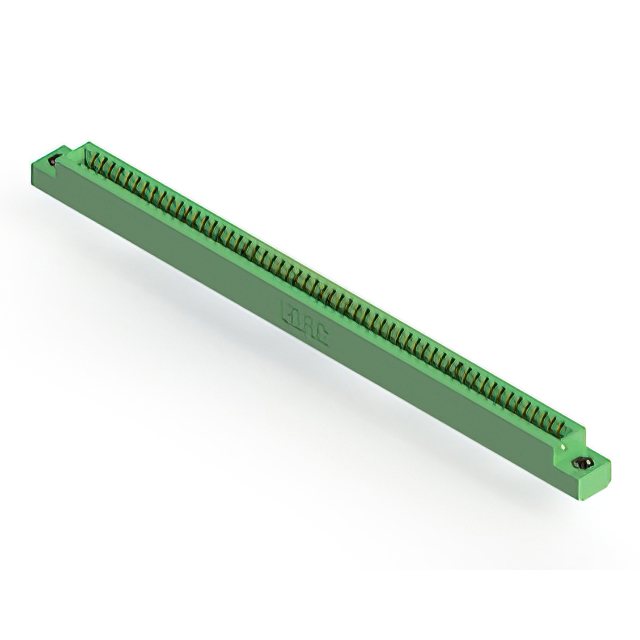

2.54MM STRAIGHT 56P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

341-056-520-108

Active

EDAC Inc.

2.54MM STRAIGHT 56P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-056-520-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	56
Number of Positions/Bay/Row [custom]	56
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

341-056 Series

Part	Number of Positions/Bay/Row [custom]	Contact Material	Termination Rows	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Gender	Card Type	Read Out	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Contact Type	Mounting Type	Color	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 341-056-520-108	56	Copper Alloy	1	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Polyester Thermoplastic	Female	Non Specified - Single Edge	Single	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Semi Bellows	Through Hole	Green	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 341-056-524-102	56	Copper Alloy	1	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Polyester Thermoplastic	Female	Non Specified - Single Edge	Single	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Semi Bellows	Through Hole	Green	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.25 mm	0.128 "
EDAC Inc. 341-056-522-101	56	Copper Alloy	1		-40 °C	105 ░C	Polyester Thermoplastic	Female	Non Specified - Single Edge	Single	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Semi Bellows	Through Hole	Green	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 341-056-556-201	28	Copper Alloy	2		-40 °C	105 ░C	Polyester Thermoplastic	Female	Non Specified - Dual Edge	Dual	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Semi Bellows	Board Edge Straddle Mount	Green	Gold	2	10 Áin	0.25 Ám	2.54 mm	0.1 in			Card Extender
EDAC Inc. 341-056-560-202	28	Copper Alloy	2	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Polyester Thermoplastic	Female	Non Specified - Dual Edge	Dual	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Semi Bellows	Board Edge Straddle Mount	Green	Gold	2	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.25 mm	0.128 "	Card Extender
EDAC Inc. 341-056-500-104	56	Copper Alloy	1	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Diallyl Phthalate (DAP)	Female	Non Specified - Single Edge	Single	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Semi Bellows	Through Hole	Green	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.96 mm	0.156 in
EDAC Inc. 341-056-500-207	28	Copper Alloy	2	Flush Mount M3 Threaded Insert Top Opening	-40 °C	105 ░C	Diallyl Phthalate (DAP)	Female	Non Specified - Dual Edge	Dual	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Semi Bellows	Through Hole	Green	Gold	2	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 341-056-520-104	56	Copper Alloy	1	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Polyester Thermoplastic	Female	Non Specified - Single Edge	Single	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Semi Bellows	Through Hole	Green	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.96 mm	0.156 in
EDAC Inc. 341-056-524-107	56	Copper Alloy	1	Flush Mount M3 Threaded Insert Top Opening	-40 °C	105 ░C	Polyester Thermoplastic	Female	Non Specified - Single Edge	Single	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Semi Bellows	Through Hole	Green	Gold	1	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 341-056-555-204	28	Copper Alloy	2	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Polyester Thermoplastic	Female	Non Specified - Dual Edge	Dual	56	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Semi Bellows	Through Hole	Green	Gold	2	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.96 mm	0.156 in	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 26.71
LCSC	Piece	1	$ 17.81
		200	$ 6.89
		500	$ 6.65
		1000	$ 6.53

Description

General part information

341-056 Series

56 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
