132113RP-10

Active

Amphenol RF

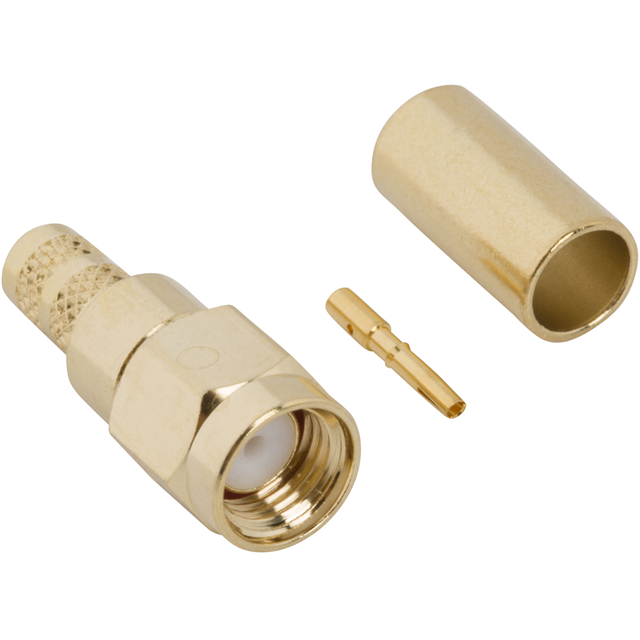

RP-SMA STRAIGHT CRIMP PLUG RG-58 RG-141 TIMES LMR-195 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RP-SMA STRAIGHT CRIMP PLUG RG-58 RG-141 TIMES LMR-195 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	132113RP-10

Body Finish	Gold
Body Material	Brass
Cable Group	LMR-195, RG-58C, 141
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Gold
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Number of Ports	Shield Termination	Connector Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Body Finish	Includes	Center Contact Plating	Housing Color	Center Contact Material	Contact Termination	Cable Group	Dielectric Material	Mating Cycles	Mounting Type	Impedance	Fastening Type	Frequency - Max [Max]	Voltage Rating
Amphenol RF 132113RP-10	1	Crimp	Female Socket Plug	Brass	-65 ░C	165 °C	RP-SMA	Gold	1 Connector 1 Contact 1 Ferrule	Gold	Gold	Beryllium Copper	Solder	141 LMR-195 RG-58C	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line)
Amphenol RF 132113RPRT	1	Crimp	Female Socket Plug	Brass	-65 ░C	165 °C	RP-SMA	Gold	1 Connector 1 Contact 1 Ferrule	Gold	Gold	Beryllium Copper	Solder	RG-58	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line)	50 Ohms	Threaded Reverse	12.4 GHz	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Plug, Female Socket Free Hanging (In-Line) Solder
