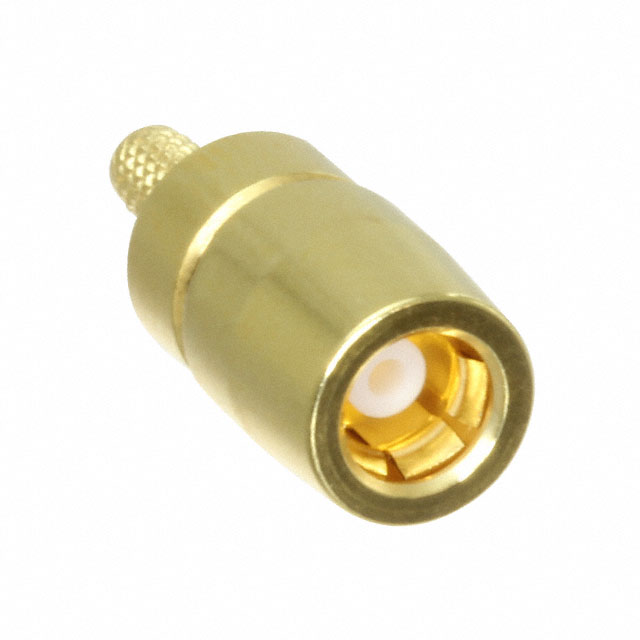

59K106-101L5

Active

Rosenberger

CONN SMB JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN SMB JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	59K106-101L5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-178B, 196A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Center Contact Plating	Contact Termination	Impedance	Connector Style	Mating Cycles	Housing Color	Fastening Type	Voltage Rating	Number of Ports	Body Finish	Shield Termination	Frequency - Max [Max]	Includes	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Cable Group	Body Material	Connector Type	Dielectric Material
Rosenberger 59K106-103L5	Gold	Crimp	50 Ohms	SMB	500	Gold	Snap-On	250 VDC	1	Gold	Crimp	4 GHz	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	155 °C	-55 °C	Beryllium Copper	RG-316	Brass	Female Socket Jack	Polytetrafluoroethylene (PTFE)
Rosenberger 59K106-101L5	Gold	Crimp	50 Ohms	SMB	500	Gold	Snap-On	250 VDC	1	Gold	Crimp	4 GHz	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	155 °C	-55 °C	Beryllium Copper	196A RG-178B	Beryllium Copper	Female Socket Jack	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
