TXR40AC45-2420AIL

Active

TE Connectivity Aerospace, Defense and Marine

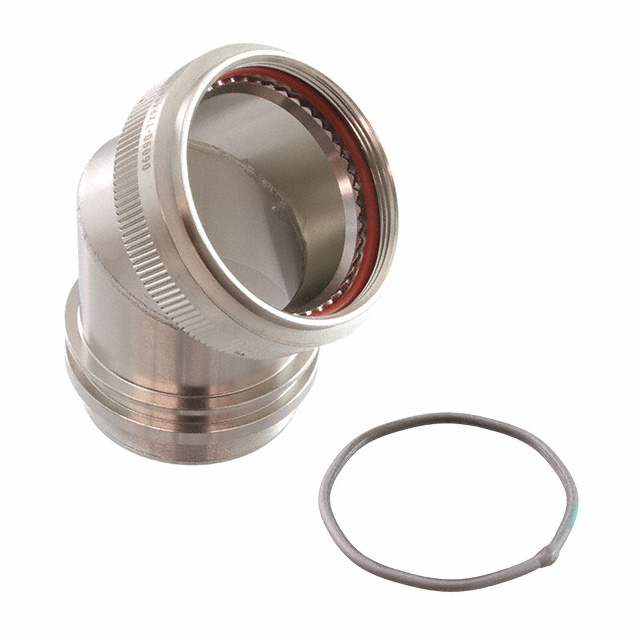

CONN BACKSHELL ADPT SZ25 J SILV

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ25 J SILV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Silver Connector Backshell, Heat Shrink Adapter M37x1 25, J

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TXR40AC45-2420AIL	TXR40AC45 Series

Cable Exit	45 °	45 °
Color	Silver	Silver
Diameter - Outside	-	29 mm
Diameter - Outside [diameter]	43.5 mm	1.142 - 43.5 mm
Diameter - Outside [diameter]	1.713 "	1.279 - 1.713 "
Features	Tinel Lock, Wire Holes	Tinel Lock, Wire Holes
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs	1 pcs
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy
Plating	Electroless Nickel	Electroless Nickel
Shell Size - Insert	J	J, D, 17, E
Shell Size - Insert	25	15 - 25
Shielding	Shielded	Shielded
Thread Size	M37x1	M37x1, M25x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

CONN BACKSHELL ADPT SZ25 J SILV

Part	Includes	Material	Shielding	Type	Ingress Protection	Features	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	For Use With/Related Products	Plating	Shell Size - Insert	Shell Size - Insert	Thread Size	Diameter - Outside [diameter]
TE Connectivity Aerospace, Defense and Marine TXR40AC45-2420AIL	1 pcs, 1 pcs, 1 pcs, 1 pcs	Aluminum Alloy	Shielded	Backshell, Heat Shrink Adapter	Environment Resistant	Tinel Lock, Wire Holes	45 °	43.5 mm	1.713 "	Silver	MIL-DTL-38999 Series III, IV	Electroless Nickel	J	25	M37x1
TE Connectivity Aerospace, Defense and Marine TXR40AC45-1410BI	1 pcs, 1 pcs, 1 pcs, 1 pcs	Aluminum Alloy	Shielded	Backshell, Heat Shrink Adapter	Environment Resistant	Tinel Lock	45 °	1.142 in		Silver	MIL-DTL-38999 Series III, IV	Electroless Nickel	D	15		29 mm
TE Connectivity Aerospace, Defense and Marine TXR40AC45-1608BI	1 pcs, 1 pcs, 1 pcs, 1 pcs	Aluminum Alloy	Shielded	Backshell, Heat Shrink Adapter	Environment Resistant	Tinel Lock	45 °	32.49 mm	1.279 in	Silver	MIL-DTL-38999 Series III, IV	Electroless Nickel	17, E		M25x1
