845-044-521-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 44POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-044-521-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 44POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-044-521-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 44 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-044 Series
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Mounting Type | Contact Finish | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Color | Material - Insulation | Pitch [x] | Pitch [x] | Gender | Termination | Termination Rows | Contact Material | Flange Feature | Flange Feature | Flange Feature | Read Out | Number of Rows | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | Gold | 22 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Solder Eyelet(s) | 2 | Copper Alloy | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Dual | 2 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | Gold | 22 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Wire Wrap | 2 | Copper Alloy | M3 Threaded Insert Top Mount Opening | Dual | 2 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Board Edge Straddle Mount | Gold | 22 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Solder | 2 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Dual | 2 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | ||||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | Gold | 22 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Solder | 2 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Dual | 2 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Board Edge Straddle Mount | Gold | 22 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Solder | 2 | Copper Alloy | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Dual | 2 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | ||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Single Edge | Through Hole | Gold | 44 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Solder | 1 | Copper Alloy | Flush Mount Top Opening Unthreaded | Single | 1 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | |||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole Right Angle | Gold | 22 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Solder | 2 | Copper Alloy | M3 Threaded Insert Top Mount Opening | Dual | 2 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | Gold | 22 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Solder Eyelet(s) | 2 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Dual | 2 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Board Edge Straddle Mount | Gold | 22 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Solder | 2 | Copper Alloy | Flush Mount Top Opening Unthreaded | Dual | 2 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | 3.25 mm | 0.128 " | ||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | Gold | 22 | 10 Áin | 0.25 Ám | Cantilever | Green | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | Female | Solder | 2 | Copper Alloy | 3.25 mm | 0.128 in | Dual | 2 | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-044 Series

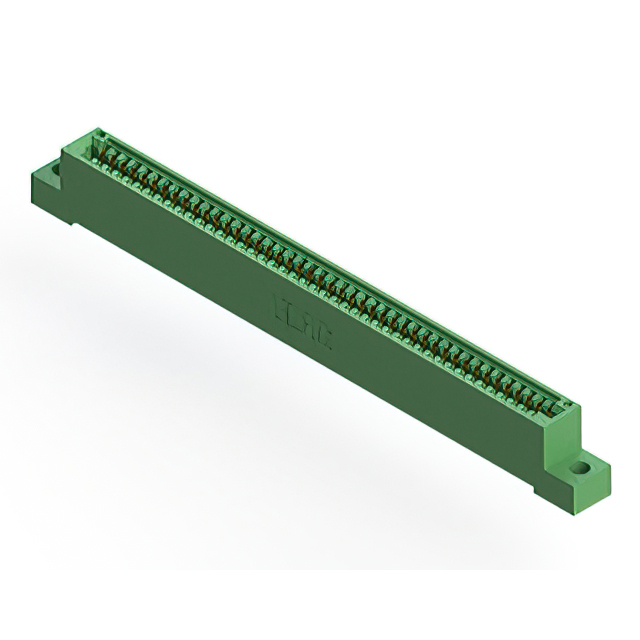

44 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
