DX1092/YL
ActiveBULGIN LIMITED
LED PANEL MOUNT INDICATOR, ALUMINIUM BEZEL, YELLOW, 2.1 VDC, 8 MM, 30 MA, 20 MCD, IP66
Deep-Dive with AI
Search across all available documentation for this part.
DX1092/YL
ActiveBULGIN LIMITED
LED PANEL MOUNT INDICATOR, ALUMINIUM BEZEL, YELLOW, 2.1 VDC, 8 MM, 30 MA, 20 MCD, IP66
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DX1092/YL |
|---|---|
| Current | 30 mA |
| Lamp Color | Yellow |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 20 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Termination Style | PC Pin |
| Type | LED |
| Voltage | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DX1092 Series

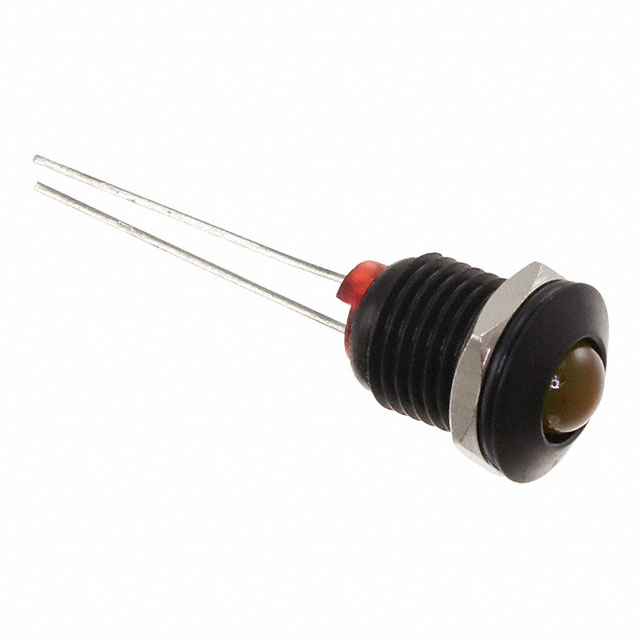

The DX1092/YL is a yellow panel-mount LED Indicator made of aluminium bezel with black anodized finish. It offers prominent style and 260°C for 5 seconds maximum lead solder time.
