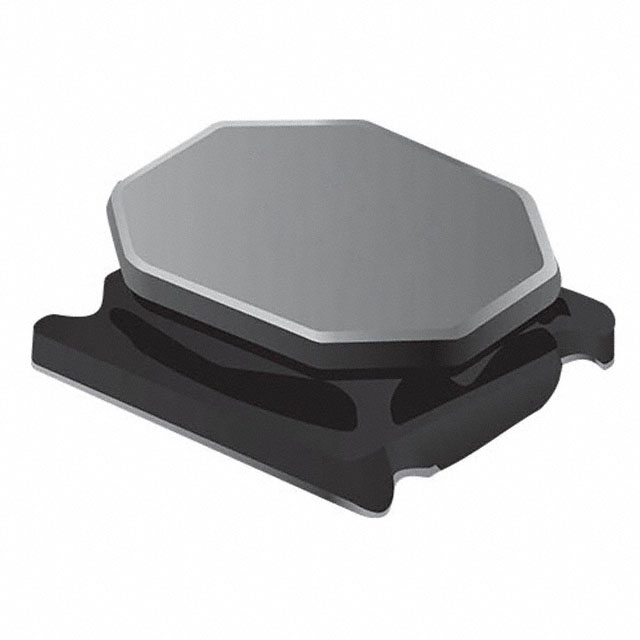

SRN5020-330M

Obsolete

Bourns Inc.

FIXED IND 33UH 900MA 516MOHM SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 33UH 900MA 516MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Self Resonant	Current Rating (Amps)	Q @ Freq	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Current - Saturation (Isat)	Material - Core	Tolerance	DC Resistance (DCR) [Max]	Inductance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding
Bourns Inc. SRN5020-1R5Y	60 MHz	3.2 A	7.96 MHz 13	Nonstandard	Drum Core Wirewound	125 °C	-40 °C	100 kHz	3.35 A	Ferrite	30 %	31 mOhm	1.5 µH	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	2 mm	0.079 in	Shielded
Bourns Inc. SRN5020-3R3M	40 MHz	2.4 A	7.96 MHz 11	Nonstandard	Drum Core Wirewound	125 °C	-40 °C	100 kHz	2.4 A	Ferrite	20 %	58 mOhm	3.3 µH	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	2 mm	0.079 in	Shielded
Bourns Inc. SRN5020-330M	10 MHz	900 mA	2.52 MHz 11	Nonstandard	Drum Core Wirewound	125 °C	-40 °C	100 kHz	800 mA	Ferrite	20 %		33 µH	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	2 mm	0.079 in	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

33 µH Shielded Drum Core, Wirewound Inductor 900 mA 516mOhm Max Nonstandard

Technical documentation and resources

No documents available
